超高功率調Q納秒激光器（100-1400mJ）
Q開關Nd:YAG納秒激光器系列包含不同輸出脈沖能量宾濒，5-24ns輸出脈寬，不同的發散角和重復頻率屏箍。 它們通常配內置或外部倍頻器實現1064nm绘梦，532nm，355nm赴魁，266nm卸奉，216nm波長轉換。在某些激光模型中應用可變反射系數的反射鏡颖御，可以提供良好的光束質量和良好的諧波轉換榄棵。部分激光器型號中應用了可變反射系數反射鏡，可以提供良好的光束質量和諧波轉換效果潘拱。雙脈沖調q激光器在兩個輸出脈沖之間具有1ns的精度延遲疹鳄，可用于激光光譜和測速÷瘢可靠穩定的Q開關Nd:YAG激光器操作簡單瘪弓，具有方便的遙控和計算機接口。
選型指南：
| 型號 | 重頻 | 單脈沖能量@波長 | 脈寬 | 其它 | ||||
| E1064, mJ | E532, mJ | E355, mJ | E266, mJ | E213, mJ | ||||

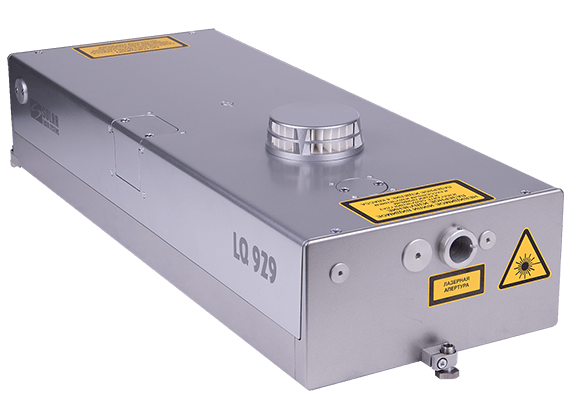

| LQ929A(1064NM) | 5 | 1400 | — | — | — | — | ≤11ns | — |
| 10 | 1400 | — | — | — | — | |||
| LQ929A(532NM) | 5 | 1400 | 800 | — | — | — | ||
| 10 | 1400 | 800 | — | — | — | |||
| LQ929A(355NM) | 5 | 1400 | 630 | 420/390 | — | — | ||
| 10 | 1400 | 630 | 420/350 | — | — | |||
| LQ929A(266NM) | 5 | 1400 | 800 | — | 210 | — | ||
| 10 | 1400 | 800 | — | 190 | — | |||
| LQ929A(213NM) | 5 | 1400 | 630 | 420/390 | — | 45/40 | ||
| 10 | 1400 | 630 | 420/350 | — | 40/35 | |||
| LQ929B(1064NM) | 5 | 1400 | — | — | — | — | ≤10ns | — |
| 10 | 1400 | — | — | — | — | |||
| LQ929B(532NM) | 5 | 1400 | 600 | — | — | — | ||
| 10 | 1400 | 600 | — | — | — | |||
| LQ929B(355NM) | 5 | 1400 | 450 | 300/280 | — | — | ||
| 10 | 1400 | 450 | 300/250 | — | — | |||
| LQ929B(266NM) | 5 | 1400 | 600 | — | 200 | — | ||
| 10 | 1400 | 600 | — | 180 | — | |||
| LQ929B(213NM) | 5 | 1400 | 450 | 300/280 | — | 45/40 | ||
| 10 | 1400 | 450 | 300/250 | — | 40/35 | |||
| LQ529A(1064NM) | 5 | 500 | — | — | — | — | 10-13ns | — |
| 10 | 500 | — | — | — | — | |||
| LQ529A(532NM) | 5 | 500 | 280 | — | — | — | ||
| 10 | 500 | 280 | — | — | — | |||
| LQ529A(355NM) | 5 | 500 | 225 | 130/110 | — | — | ||
| 10 | 500 | 225 | 130/110 | — | — | |||
| LQ529A(266NM) | 5 | 500 | 280 | — | 85 | — | ||
| 10 | 500 | 280 | — | 70 | — | |||
| LQ529A(213NM) | 5 | 500 | 225 | 130/110 | — | 25/20 | ||
| 10 | 500 | 225 | 130/110 | — | 20/15 | |||
| LQ529B(1064NM) | 10 | 350 | — | — | — | — | 10-13ns | — |
| 20 | 350 | — | — | — | — | |||
| LQ529B(532NM) | 10 | 350 | 190 | — | — | — | ||
| 20 | 350 | 190 | — | — | — | |||
| LQ529B(355NM) | 10 | 350 | 140 | 100/90 | — | — | ||
| 20 | 350 | 140 | 100/80 | — | — | |||
| LQ529B(266NM) | 10 | 350 | 190 | — | 60 | — | ||
| 20 | 350 | 190 | — | 40 | — | |||
| LQ529B(213NM) | 10 | 350 | 140 | 100/90 | — | 18/15 | ||
| 20 | 350 | 140 | 100/80 | — | 15/12 | |||
| LQ529C(1064NM) | 50 | 150 | — | — | — | — | 10-13ns | — |
| LQ529C(532NM) | 50 | 150 | 80 | — | — | — | ||
| LQ529C(355NM) | 50 | 150 | 65 | 40 | — | — | ||
| LQ529C(266NM) | 50 | 150 | 80 | — | 20 | — | ||
| LQ529C(213NM) | 50 | 150 | 65 | 40 | 4.5 | |||
| LQ215(1064NM) | 10 | 180 | 6-10ns | — | ||||
| 20 | 180 | |||||||
| LQ215(532NM) | 10 | 180 | 100 | |||||
| 20 | 180 | 100 | ||||||
| LQ215(355NM) | 10 | 180 | 80 | 60/50 | ||||
| 20 | 180 | 80 | 60/45 | |||||
| LQ215(266NM) | 10 | 180 | 100 | 35 | ||||
| 20 | 180 | 100 | 35 | |||||
| LQ215(213NM) | 10 | 180 | 80 | 60/50 | 8/6 | |||
| 20 | 180 | 80 | 60/45 | 6/5 | ||||

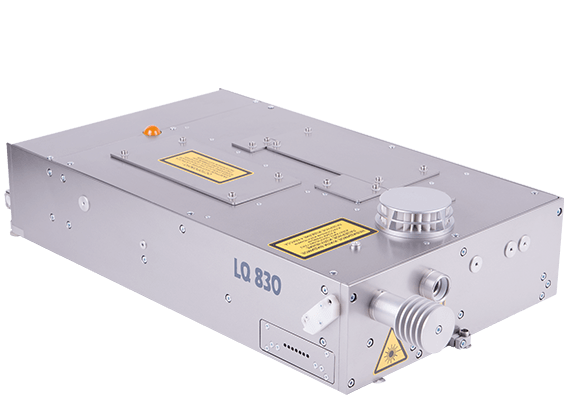

| LQ830 (1064NM) | 10 | 700 | — | — | — | — | 6-9ns | TEM00 發散角≤0.25mrad 輸出線寬≤25px-1 |
| LQ830 (532NM) | 10 | 700 | 450 | — | — | — | ||
| LQ830 (355NM) | 10 | 700 | 350 | 300 | — | — | ||
| LQ830 (266NM) | 10 | 700 | 450 | — | 130 | — | ||
| LQ830 (213NM) | 10 | 700 | 315 | 300 | — | 50 | ||
| LQ629 (1064NM) | 100 | 200 | 9-12ns | — | ||||
| LQ629 (532NM) | 100 | 200 | 90 | |||||
| LQ629 (355NM) | 100 | 200 | 80 | 50 | ||||
| LQ629 (266NM) | 100 | 200 | 90 | 15 | ||||
| LQ629 (213NM) | 100 | 200 | 80 | 50 | 5.5 | |||
| QX500 | 1-20 | 160 | 90 | 50 | 25 | 5 | 10ns | |
| LQ215-D | 1-20 | 100 | 50 | — | — | — | 6-10ns | 脈沖延遲可調0-80us |
