陷波濾光片---高透過率备图，高截止深度
chroma 的磁控濺射鍍膜工藝可保證鍍膜機連續精確運行 30 小時以上，從而能夠?qū)崿F(xiàn)高透過率赶袄，超寬透過率范圍揽涮，高截止深度，窄帶寬和高損傷閾值的陷波濾光片弃鸦。適用于各種激光系統 (激光誘導熒光绞吁、拉曼幢痘、激光誘導 擊穿光譜和生物光子學等) 唬格。
Chroma 陷波濾光片分為Notch filter和TopNotchTM Filter兩種。TopNotchTM Filter為 Chroma 高端陷波濾光片颜说，具有以下特點：
超寬透過率范圍 (350–1600 nm)购岗；
窄帶寬 (3% of Notch CWL)；
高截止深度 (OD > 6)门粪；
寬截止范圍 (> 6 nm)喊积；
高損傷閾值 (1.75J/cm2 @ 532 nm，10 ns玄妈，10 HZ )乾吻。
產品型號：
產品型號（陷波濾光片） | |||||||
激光波長 | 陷波濾光片 | 陷波帶寬 (Typical) | 透過率范圍 | 截止深度@laserline | |||
355nm | ZET355NF | 10nm | 300-750nm | OD > 6 | |||
457nm | ZET457NF | 22nm | 410-750nm | OD > 6 | |||
473nm | ZET473NF | 25nm | 415-750nm | OD > 6 | |||
ZET488NF | 23nm | 410-800nm | OD > 6 | ||||
ZET488TopNotch? | <17nm | 350-1600nm | OD > 6 | ||||
514nm | ZET514TopNotch? | <18nm | 350-1600nm | OD > 6 | |||
532nm | ZET532NF | 25nm | 410-800nm | OD > 6 | |||
ZET532TopNotch? | <19nm | 350-1600nm | OD > 6 | ||||
ZET561NF | 27nm | 410-800nm | OD > 6 | ||||
ZET561TopNotch? | <20nm | 350-1600nm | OD > 6 | ||||
594nm | ZET593NF | 25nm | 400-800nm | OD > 6 | |||
ZET594TopNotch? | <=21nm | 350-1600nm | OD > 6 | ||||
633nm | ZET633TopNotch? | <=22nm | 350-1600nm | OD > 6 | |||
635nm | ZET635NF | 32nm | 410-800nm | OD > 6 | |||
642nm | ZET642NF | 37nm | 412-800nm | OD > 6 | |||

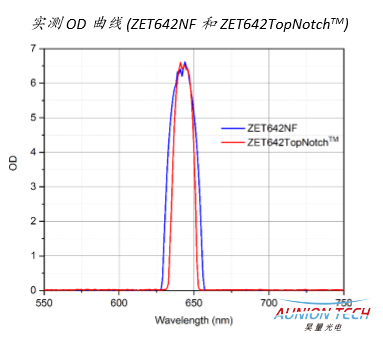

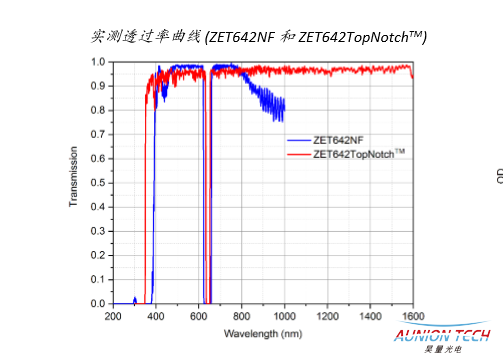

ZET642TopNotch? | <=22nm | 350-1600nm | OD > 6 | ||||
647nm | ZET647NF | 34nm | 410-800nm | OD > 6 | |||
670nm | ZET670NF | 30nm | 400-800 nm | OD > 6 | |||
685nm | ZET685NF | 36nm | 435-850nm | OD > 5.5 | |||
730nm | ZET730NF | 32nm | 430-850 nm | OD > 6 | |||
760nm | ZET760NF | 37nm | 470-970 nm | OD > 5 | |||
785nm | ZET785NF | 38nm | 485-1000nm | OD > 5 | |||
ZET785TopNotchTM | <=27nm | 350-1600 nm | OD > 6 | ||||
808nm | ZET808NF | 39nm | 400-950 nm | OD > 5 | |||
產品型號（陷波二向色鏡） | |||||||
陷波二向色鏡 | 中心波長 | 反射率@CWL | 透過率范圍 | ||||
ZT442dcrb | 442 nm | >/= 98% | 350–700 nm | ||||
ZT457dcrb | 457 nm | >/= 98% | 360–700 nm | ||||
ZT473dcrb | 473 nm | >/= 98% | 385–800 nm | ||||
ZT488dcrb | 488 nm | >/= 98% | 365–750 nm | ||||
ZT532dcrb | 532 nm | >/= 98% | 405–830 nm | ||||
ZT543dcrb | 543 nm | >/= 98% | 410–850 nm | ||||
ZT550dcrb | 550 nm | >/= 98% | 450–680 nm | ||||
ZT561dcrb | 561 nm | >/= 98% | 350–800 nm | ||||
ZT594dcrb | 594 nm | >/= 98% | 400–700 nm | ||||
ZT635dcrb | 635 nm | >/= 98% | 410–780 nm | ||||
ZT647dcrb | 647 nm | >/= 98% | 420–800 nm | ||||
ZT656dcrb | 656 nm | >/= 98% | 400–1100 nm | ||||
ZT670dcrb | 670 nm | >/= 96% | 400–1100 nm | ||||
ZT780dcrb | 780 nm | >/= 95% | 400–1200 nm | ||||
ZT845/20dcrb | 845 nm | >/= 95% | 375–1250 nm | ||||
ZT915dcrb | 915 nm | >/= 95% | 330–1200 nm | ||||
ZT980dcrb | 980 nm | >/= 95% | 330–1200 nm | ||||
ZT1040dcrb | 1040 nm | >/= 95% | 670–1300 nm | ||||
ZT1064/20rb | 1064 nm | >/= 95% | 600–1380 nm | ||||
產品標簽：濾波片,陷波濾波片,窄帶寬,高透過率,高截止深度,濾波片,Chroma
