超寬帶可調諧激光器(tunable laser Source)
TLS系列超寬帶可調諧激光器是基于加拿大Photon
etc公司的可調諧濾波器技術及超連續譜光源技術研發而成的慢叨。調諧范圍從可見光到近紅外,激光線寬可達0.3nm务蝠。在整個調諧范圍內可實現較高的準確性(precise
up to 0.05 nm)及準確度(accurate up to 0.1 nm)拍谐。
Photon etc 的光學線性可調濾波器(LLTF)是一種基于體積全息光柵的非色散可調帶通濾波器馏段。它提供了行業中相對較高的信號吞吐量轩拨,而且結合了高光密度(> OD6)和出色的帶外抑制以及廣泛的波段可調性。針對這點院喜,Photon將Fianium、NKT Photonics和LEUKOS Laser的超連續譜技術的靈活性與其本身的濾波器出色的帶外抑制特性相結合喷舀,推出了由超連續譜白光光源與LLTF搭建的TLS系列超寬帶可調諧激光器寸宵,允許應用于簡單而精確的樣品激勵或儀器校準。圖示為Photon的TLS輸出光譜圖元咙。

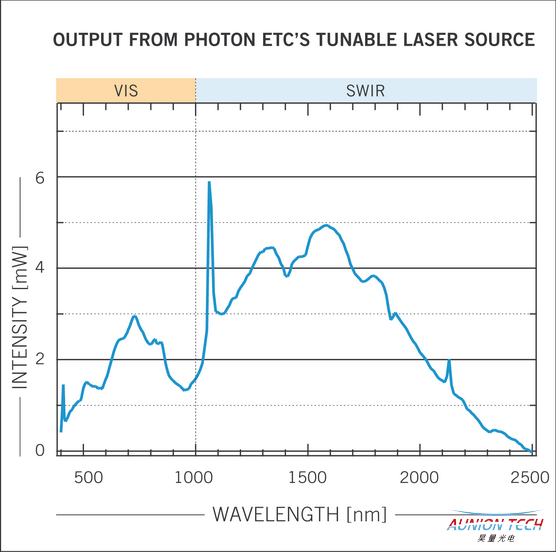

Output from Photon etc’s tunable laser source. Visible option covering 400 - 1000 nm and SWIR option covering 1000 - 2500 nm.
產品特點:
帶外抑制高
指向與功率穩定性
寬調諧范圍
自由空間或光纖耦合
微微秒或納秒源
輸入功率可達20W
可供選擇的配件
參數規格:
CONTRAST VIS | CONTRAST SWIR | CONTRAST X | |
SPECTRAL RANGE | 400 - 1000 nm | 1000 - 2300 nm (2500 nm optional*) | where X represents a custom spectral range |
BANDWIDTH (FWHM)*** | 1.0 nm - 2.5 nm | 2.0 nm - 5 nm | High resolution: 0.15 nm - 0.9 nm |
OUT OF BAND REJECTION**** | < -60 dB @ ± 40 nm | < -60 dB @ ± 80 nm (measured up to 1.7 μm) | depends on the bandwidth |
MAXIMUM INPUT AVERAGE POWER HP4: UP TO 4W HP8: UP TO 8W HP20: UP TO 20W | HP8, HP20 | HP8, HP20 | HP4 |
PEAK EFFICIENCY | typically around 65% | ||
OPTICAL DENSITY (OD) | > OD6 (measured at 1064 nm) | TBD | |
SPECTRAL POWER DENSITY | CoupLED with 4W supercontinuum source: Coupled with 8W | Coupled with 4W supercontinuum source: Coupled with 8W | depends on the bandwidth |
DAMAGE THRESHOLD | < 5 GW/cm2 peak power @ 1064 nm, 8 ns | ||
beam diameter | 2 to 5 mm (depending on λ) | ||
INPUT beam divergence REQUIREMENT | < 0.45 mrad | ||
WAVELENGTH RELATIVE ACCURACY | FWHM / 8 | ||
pointing STABILITY | < 1mm lateral dISPlacement @ 1 m from filter | ||
scanning speed (MULTIPLE STEP) | 35 ms stabilization time for 0.1 nm step, 45 ms stabilization time for 0.2 nm step, 55 ms stabilization time for 1 nm step, 60 ms stabilization time for 2 nm step, 65 ms stabilization time for 5 nm step, 70 ms stabilization time for 10 nm step, | ||
OPERATING SYSTEM (OS) | Windows Vista (32 & 64 bits) Windows 7 (32 & 64 bits) Windows 8 (32 & 64 bits) | ||
SOFTWARE | PHySpec? included (SDK available) | ||
COMPUTER CONNECTION | USB 2.0 (compatible 1.1) | ||
DIMENSIONS (L x W x H) | 9'' x 6.3'' x 6.7'' (filter) 23 cm x 16 cm x 17 cm (filter) | ||
OPERATING TEMPERATURE | 5 to 40°C | ||
STORAGE TEMPERATURE | 0 to 50°C | ||
POWER SUPPLY | 100 - 240 V, 50 - 60 Hz | ||
OPTIONS & ACCESSORIES | |||
ENHANCED SWIR | N/A | * up to 2500 nm | |
FIBEROPTIC OUTPUT | An X-Y-Z translation adjustment allows coupling optimization. The FC APC is available with the following fibers: - 9/125 μm (single mode) - 50/125 μm (multimode) - 105/125 μm (multimode) | ||
HARMONIC FILTER | Blocks the harmonics coming from the region 400-500 nm | Blocks the harmonics coming from the region 500-1000 nm and/or 1000-1250 nm | A filtre is chosen according to the spectral range |
alignment KIT (FOR FREE SPACE) | In free-space (input/output) configuration, the alignment kit allows the user to rapidly find the correct alignment | ||
** EXTENDED AND REDUCED SPECTRAL RANGES ALSO AVAILABLE | e.g.: 500-2000 nm, 400-1700 nm, 500-900 nm, 500-650 nm, 650-1000 nm, 1000-1700 nm, 1700-2300 nm, etc. |
注意:
輸入光束的散度要求不超過1 mrad,否則將無法有效工作庶香。
如需在自由空間配置中達到此規格甲棍,需要將濾波器與Photon etc背景抑制附件耦合。
TLS總光強取決于LLTF所搭配超連續譜白光光源的光強
