時域熱反射測量系統 (TDTR測試系統）

時域熱反射測量系統 (TDTR 測試系統）

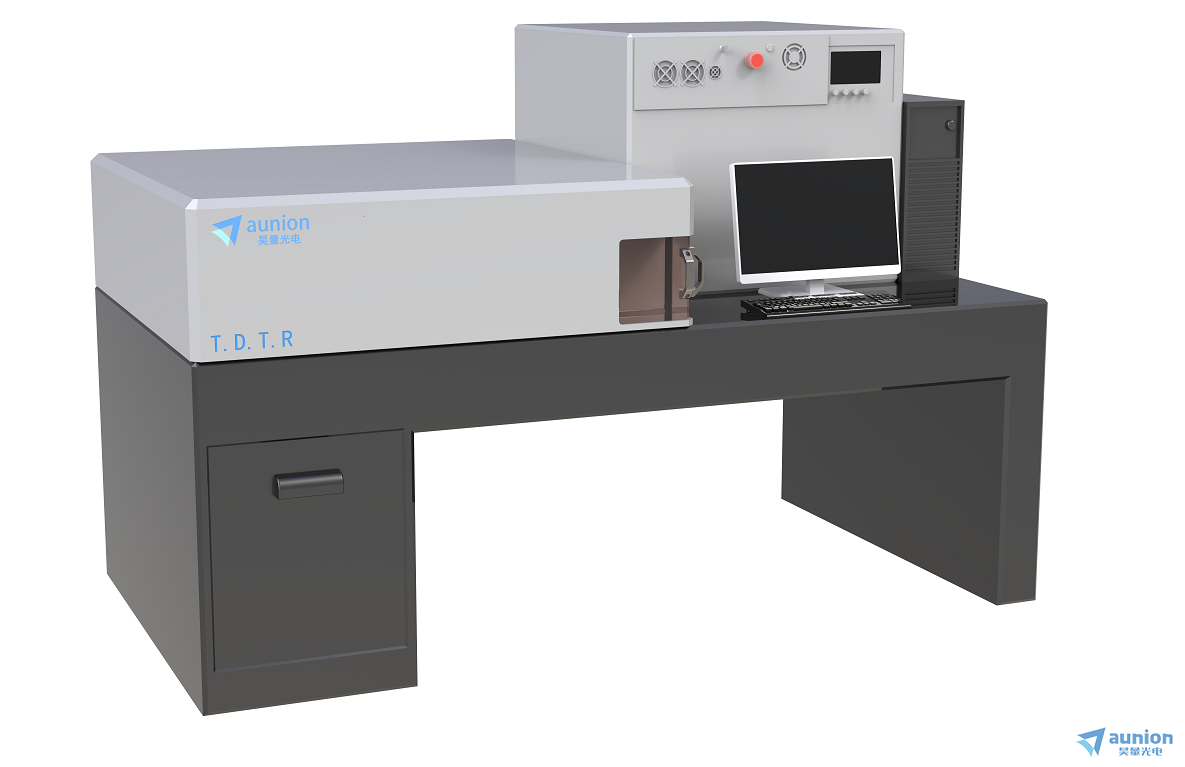

飛秒激光時域熱反射測量技術此叠，即Time-domain Thermoreflectance, TDTR 是一種基于飛秒超快激光抽運探測（pump-probe）技術的導熱測量技術随珠。相比于其他導熱測量技術灭袁，目前TDTR技術因其可以測量納米薄膜熱導率和界面熱阻以及非接觸式測量特性而具有獨特優勢。

我司新推出的時域熱反射測量系統可用于測量金屬薄膜窗看、塊體或液體的熱導率茸歧、界面熱阻等多項熱物性參數显沈，薄膜測量厚度可達納米量級软瞎！在微納結構新材料的研發與分析等方面得以越來越廣泛的應用。

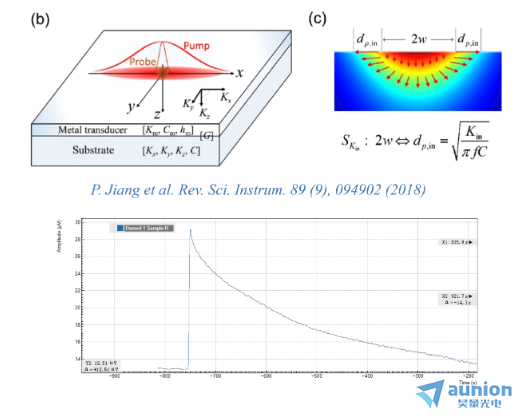

時域熱反射測量系統 (TDTR 測試系統）通過利用飛秒激光照射樣品表層金屬薄膜拉讯，令薄膜吸收能量并將其轉化為熱能涤浇， 從而傳導給樣品遂唧，并隨時間尺度逐漸向樣品傳遞芙代。金屬薄膜表面溫度隨時間回落，從而影響到其反射率盖彭。屆時再通過測量另一束探測激光的反射強度曲線纹烹，通過后續一系列的解調分析，即可得到金屬薄膜溫度隨時間的變化召边，進而獲得被測樣品的導熱特性和相關熱物性參數等。

時域熱反射測量系統 (TDTR 測試系統）特點：

• 超快動態測量過程隧熙，nm級厚度樣品測量

• 各項異性熱導率測量

• 納米材料界面熱阻材料（石墨烯合金等界面熱阻測量）

• 高溫高壓外場測量（Gpa 高壓環境  1000℃ 外場環境兼容）

掃碼試用

本時域熱反射測量系統 (TDTR 測試系統）采用了長行程線性位移臺片挂，

可以實現較高時間分辨率的熱響應測量；

雙波長激光分別進行泵浦和探測贞盯，降低了加熱和探測過程之間的干擾音念；

調制和鎖相的使用進一步保證了微小熱響應信號的捕捉和測量；

ccd顯微可視技術則能夠精確控制具有微觀結構樣品的測量躏敢。

關鍵核心技術

高分辨率時域熱反射技術

雙波長抽運探測技術

調制鎖相放大技術

光路共享CCD顯微可視技術

高集成度分體式模塊化設計

高靈活度樣品位設計

可測材料：

塊體材料
薄膜材料

可測參數：

熱導率

熱擴散率

吸熱系數

界面熱阻

應用：

材料分析

薄膜的熱物性參數測量

系統規格：

熱導率測量范圍 0.1~2,000 W·m-1·K-1

熱擴散率測量范圍0.05~1,000 mm2·s-1

可測薄膜厚度     ＞10 nm

吸熱系數 500~50,000 J·m-2·K-1·s-0.5
