中性密度濾光片（neutral density filter）又叫中灰密度鏡，簡稱ND鏡火本，其作用是過濾光線危队。這種濾光作用是非選擇性的，也就是說钙畔，ND鏡對各種不同波長的光線的減少能力是同等的茫陆、均勻的，只起到減 弱光線的作用擎析，而對原物體的顏色不會產(chǎn)生任何影響簿盅，因此可以真實再現(xiàn)景物的反差揍魂。美國chroma公司可以為客戶提供不同透過率和不同尺寸的濾光片桨醋。
中性密度濾光片：

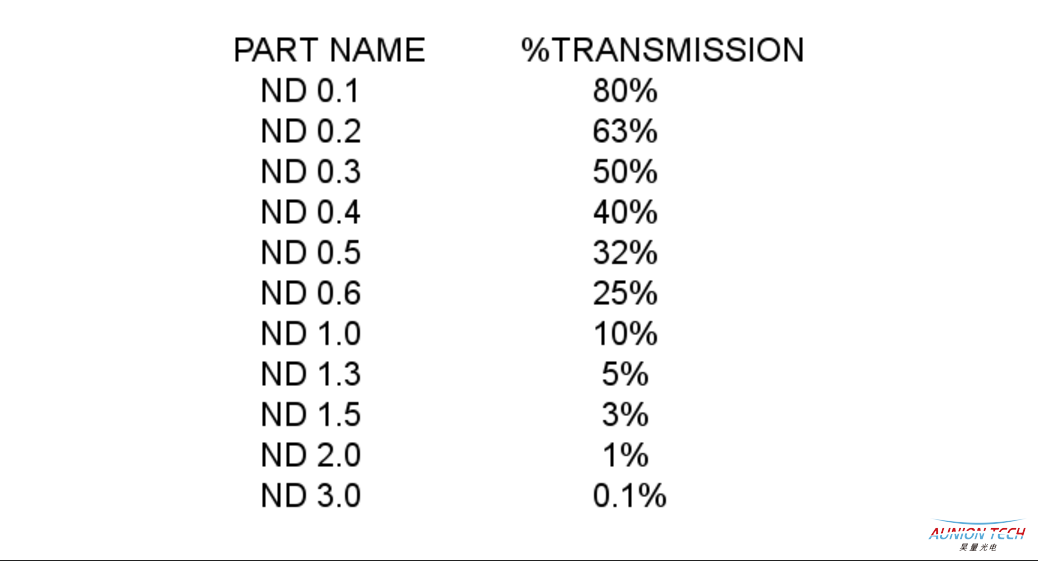

型號 | 透過率 | 尺寸 |
ND 0.1 A - 80% Trans | 80% | 25mm直徑或更小尺寸 |
ND 0.1 B - 80% Trans | 80% | 26mm - 36mm直徑 |
ND 0.1 C - 80% Trans | 80% | 37mm - 50mm直徑 |
ND 0.2 A - 63% Trans | 63% | 25mm直徑或更小尺寸 |
ND 0.2 B - 63% Trans | 63% | 26mm - 36mm直徑 |
ND 0.2 C - 63% Trans | 63% | 37mm - 50mm直徑 |
ND 0.3 A - 50% Trans | 50% | 25mm直徑或更小尺寸 |
ND 0.3 B - 50% Trans | 50% | 26mm - 36mm直徑 |
ND 0.3 C - 50% Trans | 50% | 37mm - 50mm直徑 |
ND 0.4 A - 40% Trans | 40% | 25mm直徑或更小尺寸 |
ND 0.4 B - 40% Trans | 40% | 26mm - 36mm直徑 |
ND 0.4 C - 40% Trans | 40% | 37mm - 50mm直徑 |
ND 0.5 A - 32% Trans | 32% | 25mm直徑或更小尺寸 |
ND 0.5 B - 32% Trans | 32% | 26mm - 36mm直徑 |
ND 0.5 C - 32% Trans | 32% | 37mm - 50mm直徑 |
ND 0.6 A - 25% Trans | 25% | 25mm直徑或更小尺寸 |
ND 0.6 B - 25% Trans | 25% | 26mm - 36mm直徑 |
ND 0.6 C - 25% Trans | 25% | 37mm - 50mm直徑 |
ND 1.0 A - 10% Trans | 10% | 25mm直徑或更小尺寸 |
ND 1.0 B - 10% Trans | 10% | 26mm - 36mm直徑 |
ND 1.0 C - 10% Trans | 10% | 37mm - 50mm直徑 |
ND 1.3 A - 5% Trans | 5% | 25mm直徑或更小尺寸 |
ND 1.3 B - 5% Trans | 5% | 26mm - 36mm直徑 |
ND 1.3 C - 5% Trans | 5% | 37mm - 50mm直徑 |
ND 1.5 A - 3% Trans | 3% | 25mm直徑或更小尺寸 |
ND 1.5 B - 3% Trans | 3% | 26mm - 36mm直徑 |
ND 1.5 C - 3% Trans | 3% | 37mm - 50mm直徑 |
ND 2.0 A - 1% Trans | 1% | 25mm直徑或更小尺寸 |
ND 2.0 B - 1% Trans | 1% | 26mm - 36mm直徑 |
ND 2.0 C - 1% Trans | 1% | 37mm - 50mm直徑 |
ND 3.0 A - .1% Trans | 0.1% | 25mm直徑或更小尺寸 |
ND 3.0 B - .1% Trans | 0.1% | 26mm - 36mm直徑 |
ND 3.0 C - .1% Trans | 0.1% | 37mm - 50mm直徑 |
