高速光電探測器
ALPHALAS公司UPD系列超快光電探測器適合測量直流至25 GHz的光波形蟆融。各種型號的上升時間短至15ps，覆蓋光譜范圍從170到2600 nm守呜。
UPD系列探測器簡介
所有的光電探測器都被封裝在緊湊的固體鋁外殼中型酥，并可以通過電池或外部電源進行偏壓查乒，覆蓋光譜范圍從170到1100 nm弥喉，是商業產品中紫外波段可用的帶寬很高的產品玛迄，另一種獨特的uv敏感InGaAs光電探測器可用于探測350 - 1700 nm范圍內的激光脈沖由境。
UPD系列光電探測器利用微波信號調試和多種阻抗匹配設計確保脈沖形式的測量沒有任何諧振影響÷步埽客戶可以自由地使用50 歐的阻抗來進行高速度的使用場景，或者使用高阻抗負載來獲得大信號勒虾。這保證了不同應用的靈活性纺阔。
高速光電探測器 主要特點：
響應時間: Min 15ps
帶寬：Max 25GHz
光譜范圍：170nm-2600nm
高速光電探測器 選型清單：
| Model | Rise Time (ps) | Bandwidth (GHz) | Spectral Range (nm) | Quantum Efficiency @ Peak | Sensitive Area (Dia. μm / mm2) | Noise Equiv. Power (W/√Hz) | Dark Current (nA) | Material | Optical Input / Window Type 1) | RF Output Connector Type |
| UPD-15-IR2-FC | < 15 | > 25 | 800 - 1700 | 75% | Fiber, 9 μm | 1.0 × 10-1? | 0.1 | InGaAs | Fiber w. FC/APC | SMA |
| UPD-30-VSG-P | < 30 | > 10 | 320 - 900 | 40% | 200×200 / 0.04 | 3.0 × 10-1? | 0.1 | GaAs | Polished, glass | SMA |
| UPD-35-IR2-P | < 35 | > 10 | 800 -1700 | 80% | 55 / 0.0024 | 1.0 × 10-1? | 0.3 | InGaAs | Polished, glass | SMA |
| UPD-35-IR2-D | < 35 | > 10 | 800 -1700 | 80% | 55 / 0.0024 | 1.0 × 10-1? | 0.3 | InGaAs | Diffuse, quartz | SMA |
| UPD-35-IR2-FR | < 35 | > 10 | 800 -1700 | 80% | 55 / 0.0024 | 1.0 × 10-1? | 0.3 | InGaAs | FC/PC receptacle | SMA |
| UPD-35-IR2-FC | < 35 | > 10 | 800 -1700 | 80% | Fiber, 9 μm | 1.0 × 10-1? | 0.3 | InGaAs | Fiber w. FC/APC | SMA |
| UPD-35-UVIR-P | < 35 | > 10 | 350 -1700 | 80% | 55 / 0.0024 | 1.0 × 10-1? | 0.3 | InGaAs | Polished, MgF? | SMA |
| UPD-35-UVIR-D | < 35 | > 10 | 350 -1700 | 80% | 55 / 0.0024 | 1.0 × 10-1? | 0.3 | InGaAs | Diffuse, quartz | SMA |
| UPD-40-VSI-P | < 40 | > 8.5 | 500 - 1690 | 40% | 200×200 / 0.04 | 3.0 × 10-1? | 5000 | InGaAs | Polished, glass | SMA |
| UPD-40-IR2-P | < 40 | > 8.5 | 800 - 1700 | 80% | 60 / 0.0028 | 1.1 × 10-1? | 0.5 | InGaAs | Polished, glass | SMA |
| UPD-40-IR2-D | < 40 | > 8.5 | 800 - 1700 | 80% | 60 / 0.0028 | 1.1 × 10-1? | 0.5 | InGaAs | Diffuse, quartz | SMA |
| UPD-40-IR2-FR | < 40 | > 8.5 | 800 - 1700 | 80% | 60 / 0.0028 | 1.1 × 10-1? | 0.5 | InGaAs | FC/PC receptacle | SMA |
| UPD-40-IR2-FC | < 40 | > 8.5 | 800 - 1700 | 80% | Fiber, 9 μm | 1.1 × 10-1? | 0.5 | InGaAs | Fiber w. FC/APC | SMA |
| UPD-40-UVIR-P | < 40 | > 8.5 | 350 - 1700 | 80% | 60 / 0.0028 | 1.1 × 10-1? | 0.5 | InGaAs | Polished, MgF? | SMA |
| UPD-40-UVIR-D | < 40 | > 8.5 | 350 - 1700 | 80% | 60 / 0.0028 | 1.1 × 10-1? | 0.5 | InGaAs | Diffuse, quartz | SMA |
| UPD-50-SP | < 50 | > 7.0 | 320 - 1100 | 45% | 100 / 0.0079 | 1.2 × 10-1? | 0.001 | Si | Polished, glass | SMA |
| UPD-50-SD | < 50 | > 7.0 | 320 - 1100 | 45% | 100 / 0.0079 | 1.2 × 10-1? | 0.001 | Si | Diffuse, quartz | SMA |
| UPD-50-UP | < 50 | > 7.0 | 170 - 1100 | 45% | 100 / 0.0079 | 1.2 × 10-1? | 0.001 | Si | Polished, MgF? | SMA |
| UPD-50-UD | < 50 | > 7.0 | 170 - 1100 | 45% | 100 / 0.0079 | 1.2 × 10-1? | 0.001 | Si | Diffuse, quartz | SMA |
| UPD-70-IR2-P | < 70 | > 5.0 | 800 - 1700 | 80% | 80 / 0.005 | 2.0 × 10-1? | 0.8 | InGaAs | Polished, glass | SMA |
| UPD-70-IR2-D | < 70 | > 5.0 | 800 - 1700 | 80% | 80 / 0.005 | 2.0 × 10-1? | 0.8 | InGaAs | Diffuse, quartz | SMA |
| UPD-70-IR2-FR | < 70 | > 5.0 | 800 - 1700 | 80% | 80 / 0.005 | 2.0 × 10-1? | 0.8 | InGaAs | FC/PC receptacle | SMA |
| UPD-70-IR2-FC | < 70 | > 5.0 | 800 - 1700 | 80% | Fiber, 9 μm | 2.0 × 10-1? | 0.8 | InGaAs | Fiber w. FC/APC | SMA |
| UPD-70-UVIR-P | < 70 | > 5.0 | 350 - 1700 | 80% | 80 / 0.005 | 2.0 × 10-1? | 0.8 | InGaAs | Polished, MgF? | SMA |
| UPD-70-UVIR-D | < 70 | > 5.0 | 350 - 1700 | 80% | 80 / 0.005 | 2.0 × 10-1? | 0.8 | InGaAs | Diffuse, quartz | SMA |
| UPD-100-IR1-P | < 100 | > 3.0 | 400 - 2000 | 80% | 80 / 0.005 | 3.0 × 10-13 | 700 | Ge | Polished, glass | SMA |
| UPD-200-SP | < 175 | > 2.0 | 320 - 1100 | 85% | 400 / 0.126 | 1.5 ×10-1? | 0.001 | Si | Polished, glass | BNC |
| UPD-200-SD | < 175 | > 2.0 | 320 - 1100 | 85% | 400 / 0.126 | 1.5 ×10-1? | 0.001 | Si | Diffuse, quartz | BNC |
| UPD-200-UP | < 175 | > 2.0 | 170 - 1100 | 85% | 400 / 0.126 | 1.5 ×10-1? | 0.001 | Si | Polished, MgF? | BNC |
| UPD-200-UD | < 175 | > 2.0 | 170 - 1100 | 85% | 400 / 0.126 | 1.5 ×10-1? | 0.001 | Si | Diffuse, quartz | BNC |
| UPD-300-SP | < 300 | > 1.0 | 320 - 1100 | 90% | 600 / 0.283 | 3.0 ×10-1? | 0.01 | Si | Polished, glass | BNC |
| UPD-300-SD | < 300 | > 1.0 | 320 - 1100 | 90% | 600 / 0.283 | 3.0 ×10-1? | 0.01 | Si | Diffuse, quartz | BNC |
| UPD-300-UP | < 300 | > 1.0 | 170 - 1100 | 90% | 600 / 0.283 | 3.0 ×10-1? | 0.01 | Si | Polished, MgF? | BNC |
| UPD-300-UD | < 300 | > 1.0 | 170 - 1100 | 90% | 600 / 0.283 | 3.0 ×10-1? | 0.01 | Si | Diffuse, quartz | BNC |
| UPD-500-SP | < 500 | > 0.6 | 320 - 1100 | 90% | 800 / 0.5 | 3.5 ×10-1? | 0.01 | Si | Polished, glass | BNC |
| UPD-500-SD | < 500 | > 0.6 | 320 - 1100 | 90% | 800 / 0.5 | 3.5 ×10-1? | 0.01 | Si | Diffuse, quartz | BNC |
| UPD-500-UP | < 500 | > 0.6 | 170 - 1100 | 90% | 800 / 0.5 | 3.5 ×10-1? | 0.01 | Si | Polished, MgF? | BNC |
| UPD-500-UD | < 500 | > 0.6 | 170 - 1100 | 90% | 800 / 0.5 | 3.5 ×10-1? | 0.01 | Si | Diffuse, quartz | BNC |
| UPD-3N-IR2-P | < 150 | > 0.4 | 800 - 2100 | 75% | 300 / 0.07 | 1.5 × 10-13 | 90 | InGaAs | Polished, glass | BNC |
| UPD-5N-IR2-P | < 200 | > 0.3 | 800 - 2100 | 70% | 300 / 0.07 | 7.0 ×10-13 | 2000 | InGaAs | Polished, glass | BNC |
| UPD-2M-IR2-P | < 75000 | > 0.004 | 900 - 1700 | 80% | 2000 / 3.14 | 4.0 ×10-1? | 5 | InGaAs | Polished, glass | BNC |
| UPD-2M-IR2-P- | < 75000 | > 0.004 | 900 - 1700 | 75% | 2000 / 3.14 | 1.0 ×10-1? | 0.3 | InGaAs | Polished, glass | BNC |

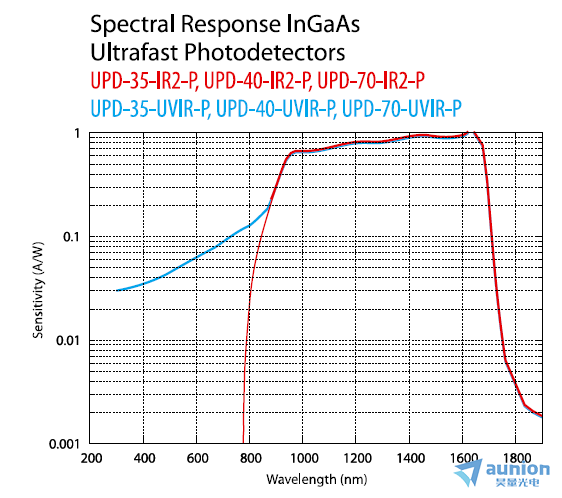

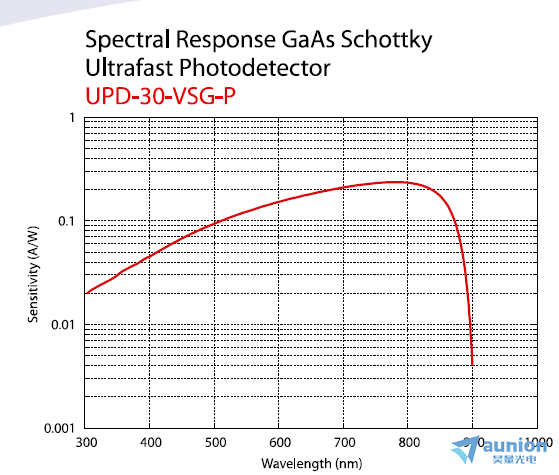

高帶寬探測器典型型號響應曲線
如果實驗需要得到更高幅值的輸出波形，并且需要Ps級的響應時間玻靡，可以搭配配套的放大器。
