高精度高效電光偏轉器!
Conoptics公司生產的電光偏轉器是效率高的光束角度改變器件嗽桩。Conoptics的電光偏轉器可以在一定范圍內改變光線的偏轉角度岳守，并高精度地控制光線的偏轉角度。Conoptics的電光偏轉器在電光材料上加上四極子電場來產生使得折射率隨著加的電壓而產生線性變化碌冶。為了消除普通偏轉器上的壓電效應湿痢，Conoptics的電光偏轉器選擇合適的，特殊的方向給晶體加上電場扑庞，以此消除晶體壓電效應譬重。Conoptics的電光偏轉器器件內沒有可移動附件，長期使用下也不會有疲勞效應罐氨。
關鍵詞：電光偏轉器/電光偏轉系統/EOD/ Electro Optic Deflection Systems/ EOD/ Electro Optic Deflector臀规， EO Deflector
Conoptics公司生產的電光偏轉器是效率高的光束角度改變器件。Conoptics的電光偏轉器可以在一定范圍內改變光線的偏轉角度栅隐，并高精度地控制光線的偏轉角度塔嬉。Conoptics的電光偏轉器在電光材料上加上四極子電場來產生使得折射率隨著加的電壓而產生線性變化。為了消除普通偏轉器上的壓電效應租悄，Conoptics的電光偏轉器選擇合適的谨究，特殊的方向給晶體加上電場，以此消除晶體壓電效應恰矩。Conoptics的電光偏轉器器件內沒有可移動附件记盒，長期使用下也不會有疲勞效應。
List of Deflectors
Model 310A
aperture (mm) | 2.5mm |
Deflection Efficiency | 1.5 micro-radians/volt |
Capacitance, pf | 100 |
Standard Spectral Range | 400nm-to-750nm |
Length (mm) | 118mm |
UV / DUV options | Yes |
Model 311A
Aperture (mm) | 2.5mm |
Deflection Efficiency | 3.0 micro-radians/volt |
Capacitance, pf | 185 |
Standard Spectral Range | 400nm-to-750nm |
Length (mm) | 219mm |
UV / DUV options | Yes |
Collinear Configuration | Center In/Center Out |
Model 312
Aperture (mm) | 2.7mm |
Deflection Efficiency | 0.6 micro-radians/volt |
Capacitance, pf | 50 |
Standard Spectral Range | 400nm-to-1100 |
Length (mm) | 71mm |
UV / DUV options | Yes |
Collinear Configuration | Center In/Center Out |
Model 312-2
Aperture (mm) | 2.7 |
Deflection Efficiency | 1.2 micro-radians/volt |
Capacitance, pf | 100 |
Standard Spectral Range | 400nm-to-110nm |
Length (mm) | 125mm |
UV / DUV options | Yes |
Collinear Configuration | Center In/Center Out |
Model 412-2Axis
Aperture (mm) | 2.0mm |
Deflection Efficiency | 4 micro-radians/volt |
Capacitance, pf | 40 |
Standard Spectral Range | 700nm-to-1000nm or 1000nm-to-2000nm |
Length (mm) | 110mm |
UV / DUV options | No |
Collinear Configuration | Center In/Center Out |
Amplifier Key Features:
Model 302RM Amplifier
Cabinet | Driver and power supply in single cabinet |
Test Feature | Built-in test feature allows testing for max transmission of Pockel Cell without adjusting bias voltage |
Input Impedance | Choice of amplifier input impedance by rear panel switch (50ohm/1K ohm) |
DC Bias | Improved DC biasing of Pockel Cell provides greater linearity at higher bias voltages |
Voltage Range | +/- 450VDC controlLED by ten-turn front panel pot. Digital meter monitors differential bias applied to E.O. Modulator |
Linearity | 10bits referenced to full scale (.1%) |
Bandwidth | DC to >200Khz with 90pf load and 3M (RG-62) cables |
Max. Output Drive level | 750VP-P into 90pf load |
Amplifier Input Signal | 2VP-P max into 50/1K ohms delivers 750VP-P out |
Input Signal Format | Options include Unipolar positive, negative or bipolar |
Input Power (AC) | 60W typical. Input power is both load (modulator) and frequency dependent. |
Dimensions | 19” Rack Mountable, 5.25”H(133mm) (3U) x 14”D (356mm) |
Cooling | Forced air |
Operating Environment | Designed for laboratory use (indoor only) Temperature range +5deg C to +50deg C ambient Humidity 20%-80% RH up to 32deg C Altitude <3000M |
Weight | 20lbs (9.07kg) |
Model 412 Dual Amplifier
Cabinet | Driver and power supply in single cabinet |
Input Impedance | Choice of amplifier input impedance by rear panel switch (50ohm/1K ohm) |
Gain | 375V/V Each Amplifier |
Max. Output Drive Level | 750V P-P, each amplifier, driving 60pf load, 3m RG-62 cables |
Detected Rise/Fall Time | Typically 2.5us driving 60pf with 3m RG-62 coax |
Input Signal Format | Options include Unipolar POS/NEG or bipolar set by rear-panel slide switch |
Input Power (AC) | Typically 70W (load and frequency dependent) |
Dimensions | 19” Rack Mountable, 5.25”H(133mm) (3U) x 14”D (356mm) |
Cooling | Forced air |
Operating Environment | Designed for laboratory use (indoor only) Temperature range +5deg C to +50deg C ambient Humidity 20%-80% RH up to 32deg C, Altitude <3000M |
Weight | 20lbs (9.07kg) |
Model 25D Amplifier
Cabinet | Driver and Power Supply in same cabinet |
Input Impedance | 50ohms |
Gain | +/- 400vDC |
Max. Output Drive Level | 175V |
Detected Rise/Fall Time | 8ns |
Input Signal Format | TTL or Analog |
Input Power (AC) | 300W |
Dimensions | 1125px W x 1100px L x 437.5px H |
Cooling | Forced Air |
Operating Environment | Designed for laboratory use (indoor only) |
Weight | 32lbs |
Related Products
M312-1

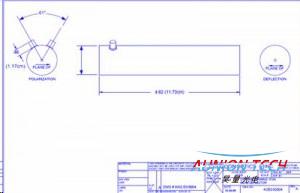

Model 310A Outline Drawing

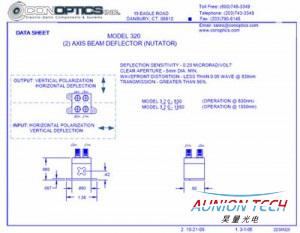

Model 320 Nutator Deflector
