平衡光學互相關器

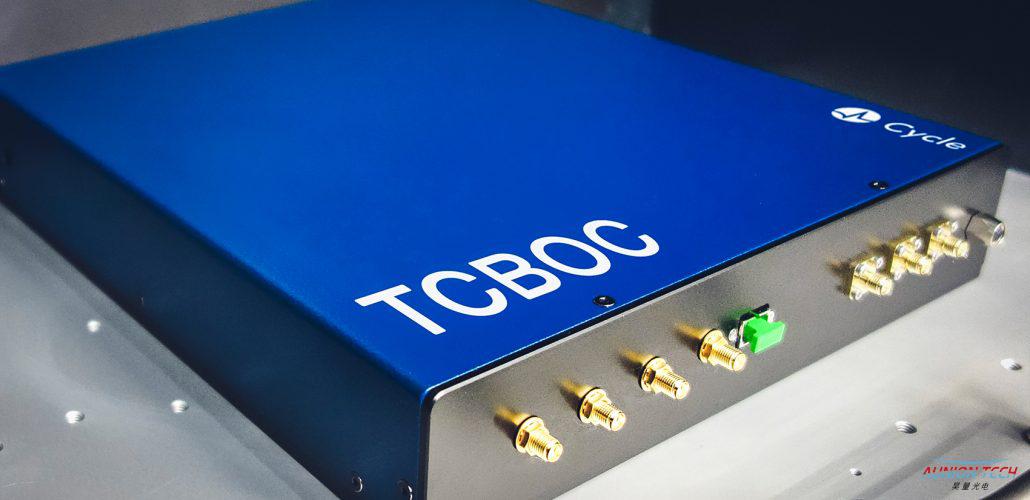

全自動平衡光學互相關器TCBOC可以高精度的檢測兩個中心波長相同/不同的光脈沖序列之間的相對時延芥丧。由于采用了平衡的光學檢測方案紧阔，TCBOC具有極高的定時靈敏度、阿秒定時分辨率续担、幅值不變性和對環境波動的魯棒性擅耽。它產生與相對時延成比例的基帶電壓信號，然后可以在鎖相環配置中使用該信號來同步具有不同波長的兩個光源(例如將Ti:Sapph振蕩器鎖定到時間穩定光纖鏈路的輸出)物遇。
應用：
? 兩個不同/相同波長光脈沖序列的重復頻率的同步
? 將超快激光器的重復頻率與穩定光纖鏈路的輸出同步
? 脈沖激光器與主激光器的緊密同步
? 抖動補償
? 超短脈沖相干合束
規格參數
Parameter | Value | Unit | Comment |
Timing sensitivity | > 10 | mV / fs | At the detector output |
Timing resolution | < 0.5 | fs | Integrated detector noise floor within 10 kHz bandwidth |
Optical input wavelength | < 2000 | nm | Tailored for the wavelengths of interest |
Optical input power | 10 - 20 | mW | Depending on wavelength range and other laser parameters |
Optical input type | free space or fiber | ||
Pulse repetition rate | < 10 | GHz | Tailored for the frequency of interest |
Dimensions | 300mm x 270mm x 66mm | ||
Weight | 5 | kg | |
Parameter | Value | Unit | Comment |
Dimensions | Rack mountable, 19 inch width, 4 height units | ||
Integrated feedback | included | Optimized PID parameters | |
Control system interface | included | Available in Epics, Tango… | |
Auto lock | included |
