高功率連續波外腔可調單頻量子級聯激光器系統

目前商用市場上輸出功率高的中紅外量子級聯激光器

1101-46-EGC激光器系統是一款光柵外腔波長可調諧量子級聯激光器系統与斤，,TEC和準直光學元件均密封于激光頭內，配置包括激光頭和配套電源, 開機可用

關鍵字：高功率量子級聯激光器荚恶，量子級聯激光器撩穿，QCL激光器，中紅外激光器谒撼，中紅外量子級聯激光器食寡，中紅外QCL激光器，QCW量子級聯激光器廓潜，準連續量子級聯激光器抵皱， 中紅外可調諧激光器，High power broad bandwidth quantum cascade lasers, QCLs辩蛋，QCL

高功率連續波外腔可調單頻量子級聯激光器系統

美國Pranalytica公司是中紅外和長波紅外的量子級聯激光器生產商呻畸，其產品主要特點為功率高，包括連續波和脈沖型悼院，寬譜伤为，波長可調，多波長据途，以及OEM量子級聯激光器绞愚。

chromaLux 激光器系統是一款光柵外腔波長可調諧單頻量子級聯激光器系統，,TEC和準直光學元件均密封于激光頭內昨凡，配置包括激光頭和配套電源, 開機可用爽醋。

Packaged quantum cascade laser

激光頭部分：

工作模式  ?     CW operation with the laser head at room temperature

中心波長  ?     Centered at ~ 4.6 μm

輸出光譜  ?     Coarse tunable using the external grating control drive over ±150 nm centered at ~ 4.6 μm

     ?     Fine tuning with frequency control of better than 40 MHz

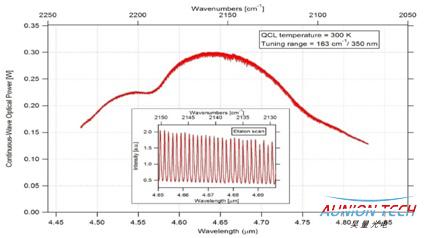

輸出功率  ?     Single frequency tunable power ≥ 200 mW over the entire tuning range; Maximum power > 300 mW at the center of the tuning range

輸出線寬  ?      < 40 MHz when operated in CW mode

輸出光束  ?      Nearly collimated

光束質量  ?      Nearly diffraction limited (please call for details)

CW模式   ?     Model 1101-46-EGC is operated in true CW mode by applying +5V DC to the input connector (front panel)

尺寸         ?      25 cm (W), 17 cm (H), 35 cm (D)

重量         ?     10 kg

控制器部分：

電源          ?      Provides the necessary laser drive current for the quantum cascade laser (factory adjusted to deliver the specified laser output power)

溫度控制   ?      Provides the necessary drive current for the associated thermoelectric coolers (factory adjusted to provide the needed cooling at the optimum operating point)

波長控制   ?      Using proprietary algorithms, provides all necessary internal signals for precisely setting and maintaing the desired wavelength

     ?     Front panel control of wavelength selection

     ?     Optional computer control of wavelength slection via USB

調制         ?      Front panel input connector for modulation of the laser output from 1 kHz to 100 kHz (TTL input), limited by the power supply. The quantum cascade laser can be modulated at rates up to 1 GHz with special power supply.

保護         ?      Laser power supply is equipped with multiple levels of protection for trouble free operation of the QCL

 ?     Power supply has a 5 second startup delay time

 ?     Laser is activated by a separate switch

尺寸         ?      28 cm (W), 18 cm (H), 37 cm (D)

重量         ?     Weight: 10 kg

供電         ?      110/220 V, 4 A (max)

 ?     Optional modification available for operation from a single 28V DC source with somewhat lower power consumption

** 具體波長等詳細指標要求，可咨詢上海昊量光電設備有限公司便脊。
