橢偏儀在位表征電化學沉積的系統搭建（三十一）- 單波長實時監測

同樣選擇-0.4mA作為沉積電流，然后進行橢偏儀的單波長實時在位測量澄港，測量角度65°椒涯，測量波長380nm。

圖4-24是沉積1080s后進行SEM測試得到的薄膜表面形貌圖回梧，在1μm標尺下看到沉積的薄膜顆粒大小不等废岂，小到幾納米大到幾百納米，形態上為不規則棱柱狀狱意。和前面準在位監測沉積1080s的對比發現此處得到的薄膜小顆粒更少湖苞，島狀更加明顯。

圖4-24 -0.4mA連續沉積1080s后的SEM圖

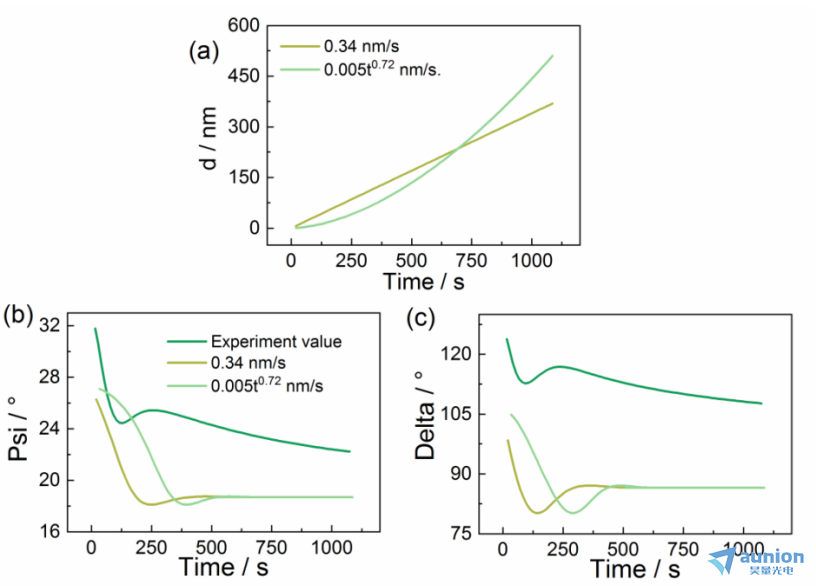

把上節層狀生長得到的平均生長速率和島狀生長得到的厚度時間關系計算得到相應厚度和時間的變化如圖4-24(a)所示详囤。利用兩個不同厚度隨時間的變化和沉積1080s擬合得到的n财骨、k值，輸入Film Wizard軟件中模擬計算得到不同厚度下的Psi和Delta，并和實驗值進行對比隆箩，如圖4-24(b)和所示该贾，其中Experiment value是在位監測得到的橢偏參數實驗值，0.34nm/s是用層狀生長平均速率得到的模擬計算值摘仅，0.005t^0.72nm/s是用島狀生長平均速率得到的模擬計算值靶庙，圖4-24(b)為Psi值，(c)圖為Delta值娃属×模可以看到實驗值和模擬計算得到的Psi和Delta值整體上的變化趨勢一致，但是在數值及峰位上存在差別矾端。對于實驗值掏击，隨著沉積時間的增加秩铆，Psi值在0-125s從32°減小到25°砚亭，在125s-500s增加，500s-1080s減信孤辍捅膘；Delta值變化趨勢和Psi一致。層狀生長模擬計算的Psi值整體上比實驗的小滚粟，在0-250s內減小寻仗，250-1080s先增后減，變化不明顯凡壤；Delta值整體上比實驗值小署尤，在0-150s內減小，150s-1080s先增后減亚侠。島狀生長模擬計算的Psi和Delta值整體和層狀生長的比較相似曹体，在500s-1080s基本重合。和層狀模式相比箕别，在0-500s數值峰位存在向右移動，Psi值的波谷由250s附近移動到了375s附近钢坦，Delta值的波谷由150s附近移動到了275s附近究孕。在0-250s內減小，250-1080s先增后減爹凹，變化不明顯厨诸；Delta值整體上比實驗值小，在0-150s內減小禾酱，150s-1080s先增后減微酬。實驗值和模擬計算出的值對比有明顯的差別绘趋。

實驗值包含了測試過程中光經過的所有介質(TIO、溶液颗管、沉積物和Au/Si基底)陷遮，反映的是測試池體整體信息。模擬值用的n垦江、k及厚度用的是準在位擬合出來的沉積層的值帽馋，計算的是沉積層的信息。所以實驗值和模擬計算的Psi和Delta值會有差別比吭，這也就是上述圖線出現差異的原因绽族。這種差異的存在同時也驗證了建模擬合的可行性。同時衩藤，從SEM的對比發現吧慢，沉積得到的CU²O表面形貌差異也可能是導致上述用Psi和Delta隨時間的變化實驗值和計算值不同的原因。

圖4-25(a)層狀(0.34nm/s)和島狀(0.005t^0.72nm/s)生長得到生長速率下厚度隨時間變化及單波長380nm實時在位監測得到的橢偏參數實驗值和模擬計算值圖Psi和Delta

了解更多橢偏儀詳情赏表，請訪問上海昊量光電的官方網頁：

http://www.wjjzl.com/three-level-56.html

更多詳情請聯系昊量光電/歡迎直接聯系昊量光電

關于昊量光電：

上海昊量光電設備有限公司是光電產品專業代理商检诗，產品包括各類激光器、光電調制器瓢剿、光學測量設備逢慌、光學元件等，涉及應用涵蓋了材料加工涕癣、光通訊、生物醫療前标、科學研究、國防距潘、量子光學炼列、生物顯微、物聯傳感音比、激光制造等俭尖；可為客戶提供完整的設備安裝，培訓洞翩，硬件開發稽犁，軟件開發，系統集成等服務骚亿。

您可以通過我們昊量光電的官方網站www.wjjzl.com了解更多的產品信息已亥，或直接來電咨詢4006-888-532。

參考文獻

[1] WONG H S P, FRANK D J, SOLOMON P M et al. Nanoscale cmos[J]. Proceedings of the IEEE, 1999, 87(4): 537-570.

[2] LOSURDO M, HINGERL K. ellipsometry at the nanoscale[M]. Springer Heidelberg New York Dordrecht London. 2013.

[3] DYRE J C. Universal low-temperature ac conductivity of macroscopically disordered nonmetals[J]. Physical Review B, 1993, 48(17): 12511-12526. DOI:10.1103/PhysRevB.48.12511.

[4] CHEN S, KüHNE P, STANISHEV V et al. On the anomalous optical conductivity dISPersion of electrically conducting polymers: Ultra-wide spectral range ellipsometry combined with a Drude-Lorentz model[J]. Journal of Materials Chemistry C, 2019, 7(15): 4350-4362.

[5] 陳籃来屠，周巖. 膜厚度測量的橢偏儀法原理分析[J]. 大學物理實驗, 1999, 12(3): 10-13.

[6] ZAPIEN J A, COLLINS R W, MESSIER R. Multichannel ellipsometer for real time spectroscopy of thin film deposition from 1.5 to 6.5 eV[J]. Review of Scientific Instruments, 2000, 71(9): 3451-3460.

[7] DULTSEV F N, KOLOSOVSKY E A. Application of ellipsometry to control the plasmachemical synthesis of thin TiONx layers[J]. Advances in Condensed Matter Physics, 2015, 2015: 1-8.

[8] DULTSEV F N, KOLOSOVSKY E A. Application of ellipsometry to control the plasmachemical synthesis of thin TiONx layers[J]. Advances in Condensed Matter Physics, 2015, 2015: 1-8.

[9] YUAN M, YUAN L, HU Z et al. In Situ Spectroscopic Ellipsometry for Thermochromic CsPbI3 Phase Evolution Portfolio[J]. Journal of Physical Chemistry C, 2020, 124(14): 8008-8014.

[10] 焦楊景.橢偏儀在位表征電化學沉積的系統搭建.云南大學說是論文,2022.

[11] CANEPA M, MAIDECCHI G, TOCCAFONDI C et al. Spectroscopic ellipsometry of self assembLED monolayers: Interface effects. the case of phenyl selenide SAMs on gold[J]. Physical Chemistry Chemical Physics, 2013, 15(27): 11559-11565. DOI:10.1039/c3cp51304a.

[12] FUJIWARA H, KONDO M, MATSUDA A. Interface-layer formation in microcrystalline Si:H growth on ZnO substrates studied by real-time spectroscopic ellipsometry and infrared spectroscopy[J]. Journal of Applied Physics, 2003, 93(5): 2400-2409.

[13] FUJIWARA H, TOYOSHIMA Y, KONDO M et al. Interface-layer formation mechanism in (formula presented) thin-film growth studied by real-time spectroscopic ellipsometry and infrared spectroscopy[J]. Physical Review B - Condensed Matter and Materials Physics, 1999, 60(19): 13598-13604.

[14] LEE W K, KO J S. Kinetic model for the simulation of hen egg white lysozyme adsorption at solid/water interface[J]. Korean Journal of Chemical Engineering, 2003, 20(3): 549-553.

[15] STAMATAKI K, PAPADAKIS V, EVEREST M A et al. Monitoring adsorption and sedimentation using evanescent-wave cavity ringdown ellipsometry[J]. Applied Optics, 2013, 52(5): 1086-1093.

[16] VIEGAS D, FERNANDES E, QUEIRóS R et al. Adapting Bobbert-Vlieger model to spectroscopic ellipsometry of gold nanoparticles with bio-organic shells[J]. Biomedical Optics Express, 2017, 8(8): 3538.

[17] ARWIN H. Application of ellipsometry techniques to biological materials[J]. Thin Solid Films, 2011, 519(9): 2589-2592.

[18] ZIMMER A, VEYS-RENAUX D, BROCH L et al. In situ spectroelectrochemical ellipsometry using super continuum white laser: Study of the anodization of magnesium alloy [J]. Journal of Vacuum Science & Technology B, 2019, 37(6): 062911.

[19] ZANGOOIE S, BJORKLUND R, ARWIN H. Water Interaction with Thermally Oxidized Porous Silicon Layers[J]. Journal of The Electrochemical Society, 1997, 144(11): 4027-4035.

[20] KYUNG Y B, LEE S, OH H et al. Determination of the optical functions of various liquids by rotating compensator multichannel spectroscopic ellipsometry[J]. Bulletin of the Korean Chemical Society, 2005, 26(6): 947-951.

[21] OGIEGLO W, VAN DER WERF H, TEMPELMAN K et al. Erratum to ― n-Hexane induced swelling of thin PDMS films under non-equilibrium nanofiltration permeation conditions, resolved by spectroscopic ellipsometry‖ [J. Membr. Sci. 431 (2013), 233-243][J]. Journal of Membrane Science, 2013, 437: 312..

[22] BROCH L, JOHANN L, STEIN N et al. Real time in situ ellipsometric and gravimetric monitoring for electrochemistry experiments[J]. Review of Scientific Instruments, 2007, 78(6).

[23] BISIO F, PRATO M, BARBORINI E et al. Interaction of alkanethiols with nanoporous cluster-assembled Au films[J]. Langmuir, 2011, 27(13): 8371-8376.

[24] 李廣立. 氧化亞銅薄膜的制備及其光電性能研究[D]. 西南交通大學, 2016.

[25] 董金礦. 氧化亞銅薄膜的制備及其光催化性能的研究[D]. 安徽建筑大學, 2014.

[26] 張楨. 氧化亞銅薄膜的電化學制備及其光催化和光電性能的研究[D]. 上海交通大學材料科 學與工程學院, 2013.

[27] DISSERTATION M. Cellulose Derivative and Lanthanide Complex Thin Film Cellulose Derivative and Lanthanide Complex Thin Film[J]. 2017.

[28] NIE J, YU X, HU D et al. Preparation and Properties of Cu2O/TiO2 heterojunction Nanocomposite for Rhodamine B Degradation under visible light[J]. ChemistrySelect, 2020, 5(27): 8118-8128.

[29] STRASSER P, GLIECH M, KUEHL S et al. Electrochemical processes on solid shaped nanoparticles with defined facets[J]. Chemical Society Reviews, 2018, 47(3): 715-735.

[30] XU Z, CHEN Y, ZHANG Z et al. Progress of research on underpotential deposition——I. Theory of underpotential deposition[J]. Wuli Huaxue Xuebao/ Acta Physico - Chimica Sinica, 2015, 31(7): 1219-1230.

[31] PANGAROV n. Thermodynamics of electrochemical phase formation and underpotential metal deposition[J]. Electrochimica Acta, 1983, 28(6): 763-775.

[32] KAYASTH S. ELECTRODEPOSITION STUDIES OF RARE EARTHS[J]. Methods in Geochemistry and Geophysics, 1972, 6(C): 5-13.

[33] KONDO T, TAKAKUSAGI S, UOSAKI K. Stability of underpotentially deposited Ag layers on a Au(1 1 1) surface studied by surface X-ray scattering[J]. Electrochemistry Communications, 2009, 11(4): 804-807.

[34] GASPAROTTO L H S, BORISENKO N, BOCCHI N et al. In situ STM investigation of the lithium underpotential deposition on Au(111) in the air- and water-stable ionic liquid 1-butyl-1-methylpyrrolidinium bis(trifluoromethylsulfonyl)amide[J]. Physical Chemistry Chemical Physics, 2009, 11(47): 11140-11145.

[35] SARABIA F J, CLIMENT V, FELIU J M. Underpotential deposition of Nickel on platinum single crystal electrodes[J]. Journal of Electroanalytical Chemistry, 2018, 819(V): 391-400.

[36] BARD A J, FAULKNER L R, SWAIN E et al. Fundamentals and Applications[M]. John Wiley & Sons, Inc, 2001.

[37] SCHWEINER F, MAIN J, FELDMAIER M et al. Impact of the valence band structure of Cu2O on excitonic spectra[J]. Physical Review B, 2016, 93(19): 1-16.

 [38] XIONG L, HUANG S, YANG X et al. P-Type and n-type Cu2O semiconductor thin films: Controllable preparation by simple solvothermal method and photoelectrochemical properties[J]. Electrochimica Acta, 2011, 56(6): 2735-2739.

[39] KAZIMIERCZUK T, FR?HLICH D, SCHEEL S et al. Giant Rydberg excitons in the copper oxide Cu2O[J]. Nature, 2014, 514(7522): 343-347.

[40] RAEBIGER H, LANY S, ZUNGER A. Origins of the p-type nature and cation deficiency in Cu2 O and related materials[J]. Physical Review B - Condensed Matter and Materials Physics, 2007, 76(4): 1-5.

[41] 舒云. Cu2O薄膜的電化學制備及其光電化學性能的研究[D]. 云南大學物理與天文學院虑椎，2019.
