橢偏儀在位表征電化學沉積的系統搭建（十八）- Pb薄膜沉積實驗

3.2.6.3 Pb薄膜沉積實驗

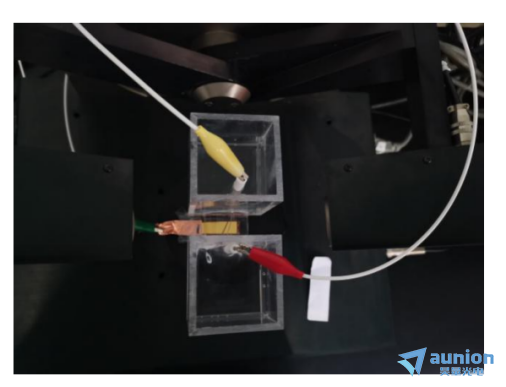

通過前面實驗與分析知溶液及溶液濃度對橢偏儀基底測試影響可忽略，故用該電解池進行了Pb的沉積實驗趾诗。采用三電極體系（工作電極：Au/Si蜡感；對電極：Pt絲；參比電極：Ag/AgCl）恃泪。溶液為1M的醋酸鈉及1M的醋酸鈉與5mM或10mM的醋酸鉛郑兴。為探究沉積條件，需對工作電極進行CV掃描悟泵，掃描速率為5mV/s杈笔，掃描電勢窗口為-1.2V—0.5V，從開路電壓（OCP）開始負向掃描糕非。通過恒壓電沉積得到Pb薄膜同時進行400nm到800nm波段的橢偏監測蒙具。實驗中電極的放置如圖3-10所示，Au/Si電極為工作電極置于觀察窗口朽肥；Pt絲對電極置于工作電極上方（不阻擋光路）禁筏；將置于魯金毛細管中的Ag/AgCl參比電極zui大限度接近Au/Si表面。將該在位監測沉積電解池置于橢偏儀的監測臺衡招，調節好準直后開始沉積和橢偏監測篱昔。

圖3-10CV掃描及在位監測Pb沉積實物圖

圖3-11是對Au/Si基底在醋酸鈉和醋酸鉛中進行的CV掃描對比圖。其中Arccell曲線為1M醋酸鈉和10mM醋酸鉛中的CV掃描曲線始腾；blank control曲線為1M醋酸鈉中的CV掃描曲線州刽；H cell曲線為前期在標準H型電解池中加1M醋酸鈉和10mM醋酸鉛中的CV掃描曲線。對比Arc cell和H cell兩條曲線可以看到浪箭，所得到的CV曲線正常穗椅，裝置可用。該體系下Pb的沉積峰位和溶出峰位大致相同奶栖，電流密度與H型電解池所測得的數據相比減小匹表，且在-0.28V左右附近的吸附峰消失。電流密度減小的原因可能有兩點宣鄙，一是電極的有效面積比實際面積信鄱啤；二是工作電極和對電極不對稱冻晤。對比Arc cell和blank control兩條曲線可知苇羡，在只有1M醋酸鈉的電解液中電流密度相對于有醋酸鉛的可忽略不計。

圖3-11不同電解池掃描速度5mV/s的CV圖

根據CV掃描結果鼻弧，對Pb薄膜沉積的電壓進行選取设江，為了使得沉積時間更長，使得更有利于橢偏儀測試温数，所以選了沉積峰位附近的電壓绣硝，及-0.57V進行Pb薄膜沉積。

圖3-12是進行電壓沉積過程的電流-時間圖撑刺，在不同電解液條件下鹉胖，沉積電壓都是-0.57V。其中藍色表示1M醋酸鈉溶液够傍，橙色是以1M醋酸鈉加5mM醋酸鉛溶液甫菠，紅色是1M醋酸鈉加10mM醋酸鉛溶液。從圖中可以看到?jīng)]有醋酸鉛存在時電流基本為零冕屯，而10mM醋酸鉛的沉積電流比5mM醋酸鉛的沉積電流大寂诱。理論上沉積電流越大，沉積速度也快安聘，相同時間沉薄膜的厚度越厚痰洒。所以由電流時間圖知只有醋酸鈉存在時沒有沉積瓢棒，加入5mM醋酸鉛時有沉積但是沉積量比10mM醋酸鉛要小。

圖3-12沉積電流時間圖

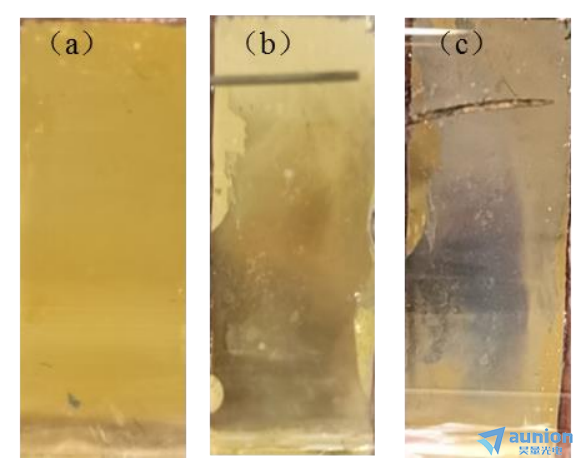

圖3-13是沉積結果實物圖丘喻，a圖是在1M醋酸鈉為電解液沉積后得到的圖脯宿，可以看到?jīng)]有沉積物；b圖是在1M醋酸鈉加5mM醋酸鉛為電解液溶液的沉積樣品泉粉，有灰黑色的明顯沉積物连霉，沉積不均勻；c圖是在1M醋酸鈉加10mM醋酸鉛為電解液溶液沉積結果嗡靡，有灰黑色的明顯沉積物跺撼，沉積不均勻。對比b和c可知讨彼，可以明顯看到電解液為10mM醋酸鉛沉積物顏色加深歉井，說明其比5mM沉積量更多，這和i-t圖所顯示的結果相對應点骑。

圖3-13不同電解液沉積結果圖酣难，(a)1M醋酸鈉電解液；(b)1M醋酸鈉加5mM醋酸鉛黑滴；(c)1M醋酸鈉加10mM醋酸鉛

在不同的沉積條件下同時進行了橢偏儀的監測憨募。圖3-14為不同條件下的橢偏結構模型，其中Au/Si基底上測得的數據袁辈，其物理模型如圖3-14(a)所示菜谣；在池體中加入去離子水后的數據，其物理模型如圖3-14(b)所示晚缩；1M醋酸鈉溶液和5/10mM醋酸鉛溶液的數據尾膊，其物理模型如圖3-14(c)所示；1M醋酸鈉溶液的數據荞彼，其物理模型如圖3-14(d)所示冈敛。

圖3-14不同條件下的物理模型圖:(a)Au/Si基底；(b)池體中加入去離子水鸣皂；(c)池體中加入1M醋酸鈉和10mM醋酸鉛抓谴；(d)池體中加入1M醋酸鈉

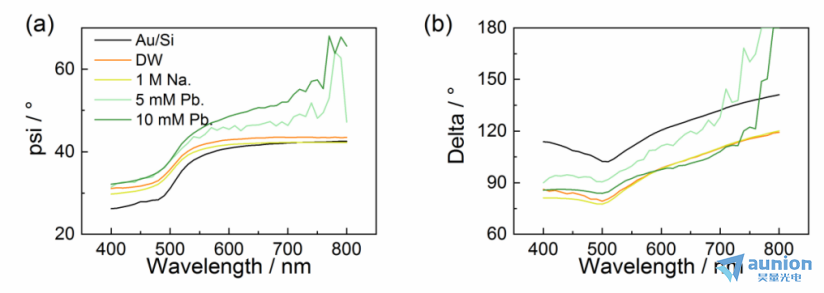

圖3-15是不同條件下進行橢偏儀測量得到的橢偏參數Psi和Delta各自對比圖。從圖中可知寞缝，Psi和Delta的值大致的變化趨勢一致癌压，但是在位監測下有鉛薄膜沉積的兩組數據全程擾動較大，曲線上有許多的小峰荆陆，這是由于鉛薄膜的沉積帶來影響滩届。

圖3-15不同條件下Psi和Delta對比

實驗說明該池體在位沉積鉛薄膜橢偏儀測試得到的數據極具不穩定性，波動較大被啼，且溶液濃度對橢偏數據的影響不明顯帜消，這和之前不同濃度測試的測試結果一致棠枉。
