橢偏儀在位表征電化學沉積的系統搭建（十二）- 光學常數的提取與COMSOL Multiphysics

2.3光學常數的提取

2.3.1建立光學模型

通過橢偏測試得到包含整個池體的參數ψ和Δ纸泡，這時要想提取CU₂O的光學常數及生長速率就需要進行建模擬合。首先把整個池體看成多層膜結構赖瞒，光從空氣中依次經過ITO女揭、溶液、CU₂O以及Au襯底栏饮，zui后反射回到橢偏儀的出射臂吧兔，zui終信息被接收。在物理層面將池體簡化為四層膜的模型袍嬉，即ITO/溶液/CU₂O/(Au/Si)境蔼，如圖2-3(a)所示。根據擬合需要可以對結構模型進行調整冬竟，如：ITO和溶液混合層/CU₂O/(Au/Si)的三層膜模型欧穴，如圖2-3(b)所示。

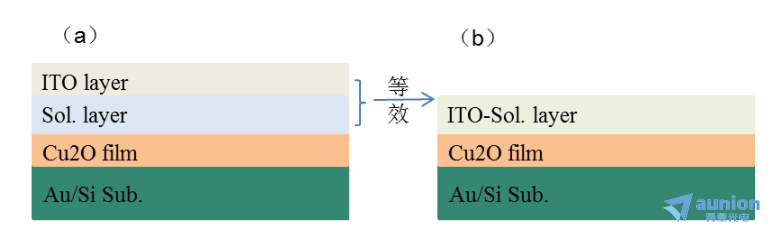

圖2-3光學模型示意圖四層泵殴；(b)三層

數據分析中用的是全局誤差zui小化(GEM)數據分析法涮帘，數據分析程序如圖2-4所示。其中光學模型選用上述的層狀模型笑诅，擬合模型用Lorentz Oscillator+Drude模型和有效介質模型(EMA)调缨。

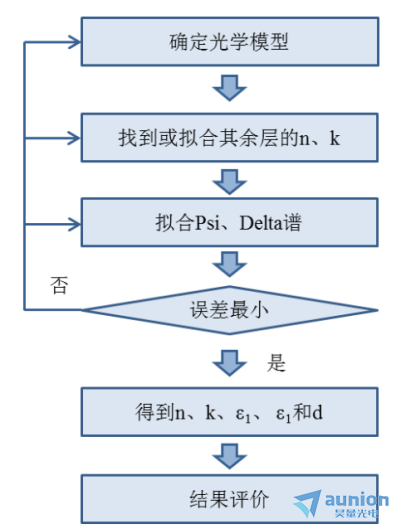

圖2-4數據擬合分析程序

2.3.2 Film Wizard

Film Wizard擬合軟件是橢偏儀專用數據處理軟件疮鲫，可以實現橢偏譜的擬合與數據的提取。在建立好擬合模型后就可以使用該軟件進行擬合弦叶，擬合步驟如下：

1.數據轉換俊犯，即把橢偏儀測試得到的數據格式(.dat)轉換為FilmWizard軟件可以識別的文件格式(.tar)；

2.打開Film Wizard軟件新建一個項目伤哺，然后把建立好的多層模型寫到新建的項目里燕侠；

3.導入數據，即把已知的基底和其他層的數據導入模型立莉，再把要擬合層的數據導入模型绢彤；

4.選擇擬合模型，Lorentz Oscillator+Drude模型或有效介質模型(EMA)蜓耻；

5.擬合茫舶，選擇需要改變的擬合參數，如厚度刹淌、振子數等饶氏，然后通過調節要擬合的參數進行擬合直至擬合誤差達到要求。

6.當誤差達到zui小后有勾，導出擬合得到的數據n疹启、k、等柠衅。

2.4 COMSOL Multiphysics

COMSOL Multiphysics被廣泛應用到許多領域的科學研究和工程計算中皮仁，COMSOL Multiphysics在多物理場的全耦合方面十分專業，可以高效的進行科學及工程領域的各種物理場景模擬菲宴，并在良好的計算性能與出眾的雙向多場直接耦合模擬分析能力加持下實現高精度數值仿真贷祈。

我們應用了COMSOL軟件對電化學沉積中的電極形狀建模及電流密度分布的模擬。電化學模塊下主要一次和二次電流分布喝峦、三次電流分布势誊、電池接口、腐蝕變形幾何谣蠢、電鍍變形幾何接口粟耻。這里主要用到了電化學模塊中的一次和二次電流分布接口中的一次電流分布，進行了一般穩態研究眉踱，其涉及到的方程有：

其中為電解質的電位挤忙，為電勢。在模擬過程中通過給定參數的初始值谈喳，即可進相應的擬合册烈，得到電解液電場分布及電流密度分布等。
