橢偏儀在位表征電化學沉積的系統搭建（十）- 研究?jī)?nèi)容和意義

5.研究?jī)?nèi)容和意義

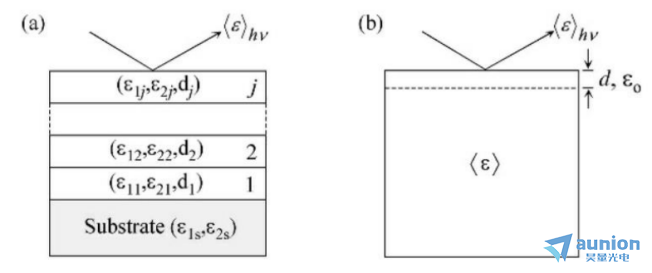

如下圖1-19為用于分析梯度層的光學模型。當梯度層的光響應用多層結構表示時如圖1-19(a)所示一屋，其厚度d_j和介電函數都是必需的窘疮。然而，由于存在大量的分析參數冀墨，使用這種光學模型進行橢偏譜分析通常比較困難闸衫。此外，該分析中的擬合誤差隨著分析誤差的傳播逐漸向頂層增加诽嘉。但是在VSA中蔚出，復雜的底層結構用偽介電函數表示，只有厚度和介電函數如圖1-19(b)虫腋。因此骄酗，即使樣品的介電函數在生長方向上不斷變化，VSA的分析也可以相對容易地進行悦冀。

圖1-19用于分析梯度層的光學模型:(a)多層模型和虛擬襯底近似(VSA)

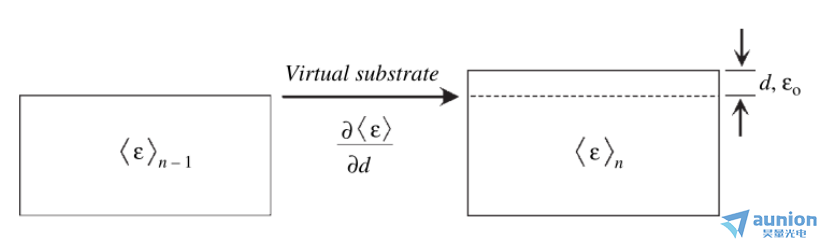

圖1-20為VSA的光學模型趋翻。在這個圖中,和表示計算出的偽介電函數，n表示在一定間隔內測量到的實時光譜數盒蟆。VSA的關鍵特征是利用偽介電函數隨厚度的變化進行分析踏烙，即在分析時师骗，如圖1-20所示被用作虛擬基板，從的變化中讨惩，對和之間形成的薄覆蓋層進行了表征辟癌。

圖1-20VSA的光學模型

表1-1中的方法各有各的優缺點，需要根據情況選擇恰當?shù)姆治龇椒ú脚А＠绠?dāng)一層的介電函數未知時愿待，我們使用GEM來得到該層的介電函數。由GEM確定的幾個介電函數可以構造一個光學數據庫靴患∪越模基于這樣的光學數據庫，我們可以利用LRA或VSA對薄膜結構進行實時控制鸳君。

本文根據實驗前期研究农渊，以現有橢偏儀為基礎，進行橢偏儀在位監測電化學沉積的構建或颊。電化學沉積過程涉及到界面層砸紊、薄膜生長和到固液界面的問題，從另外一個角度對電化學沉積的解構囱挑，也為下一步進行固液界面的研究提供一種方法醉顽。

因此本文主要的研究?jī)?nèi)容包括：

1、在位監控裝置的設計平挑。主要展開電解池的設計游添，包括用COMSOL進行電場分布的擬合，從而設計電極的位置等通熄。并根據實驗和光路的調節的優化制備了兩種類型的電解池唆涝。

2、不同溶液濃度對實驗的影響唇辨。用Pb溶液為案例廊酣，進行了不同濃度的Pb溶液的橢偏譜。并以ITO為透明工作電極赏枚，對電化學沉積過程進行了研究亡驰。

3、橢偏儀在位監測Cu2O薄膜的生長過程嗡贺。研究包括全譜(300-800nm)橢偏儀Cu2O薄膜沉積的準在位監測以及單波長(380nm)橢偏儀對Cu2O薄膜沉積的在位監測隐解。通過控制電流薄膜沉積(-0.4mA)，然后在每沉積180s后停止生長诫睬，進行橢偏譜的測試，接著對橢偏譜再利用VSA分析法解構出其光學常數和厚度帕涌。從而得到生長厚度隨著時間的變化函數摄凡，再利用單波長的橢偏參數進行解構续徽。
