橢偏儀在位表征電化學沉積的系統搭建（十六）- 可行性分析

3.2.4可行性分析

(1)光路可行性分析

如圖3-4所示蛤售，為了保證對電極不影響光路的傳輸，其可活動的范圍為圖中h所示妒潭。如果半圓直徑為50px悍抑，對電極寬25px，上限由電極碰到池體壁決定杜耙，則此時入射光的極限入射角為?₁=30°搜骡；下限由入射光的入射角決定，圖中的入射角?₂=55°佑女，則電極可調的極限zui低位置如圖所示记靡。所以在滿足對電極不擋光的情況下，入射光的入射角可調范圍是30°

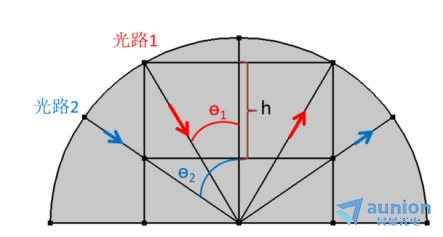

圖3-4觀察窗口光路截面分析圖

用鍍金硅片和電解液(透明溶液)在玻璃皿中調節了準直紊选，不經過玻璃皿啼止，溶液中鍍金硅片可以很好的反光；后又把玻璃皿的蓋子蓋上兵罢，驗證得知献烦，在垂直于玻璃蓋、空氣卖词、溶液界面入射時巩那，光斑可以很好的打到電極片上，基本不受光路影響，斜射時光斑就散了即横。經過實際驗證噪生，該池體設計方案可行。

關于調節光斑使其達到圓心东囚，這也可以實現的杠园，因為一旦不是垂直于池體入射，光斑就是分散的舔庶。

(2)電極的選擇

如圖3-5抛蚁，用Comsol對如圖放置的長正方形電極和圓電極進行了陽極電流密度的模擬結果如圖3-6示。

圖3-5電極電流密度模擬圖

從圖3-6中可以看出邊緣效應隨著電極的增大而減小惕橙，考慮到電解池尺寸瞧甩，則選則25px×25px的電極片是比較合適的。從c弥鹦、d對比可知肚逸，圓盤電極的邊緣化效應比長方形電極邊緣化效應更嚴重，所以選片電極更合適彬坏。

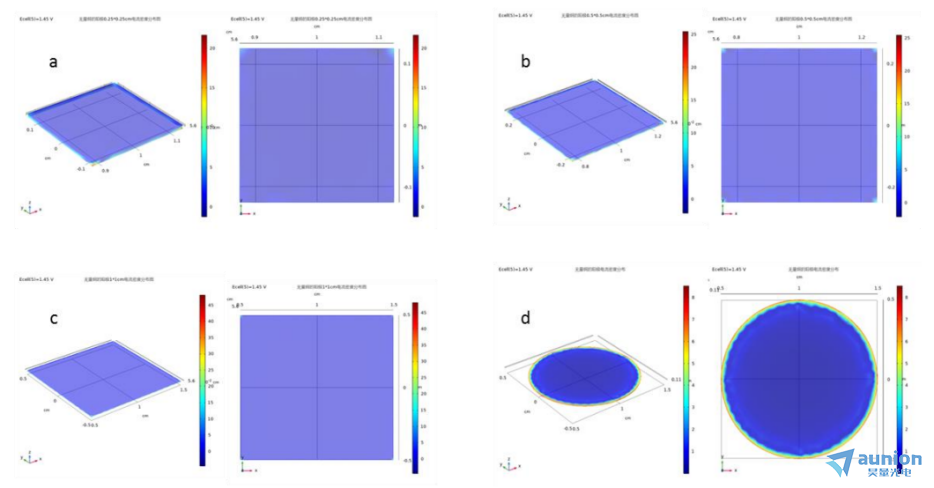

圖3-6不同尺寸電極無量綱電流密度模擬圖6.25px×6.25px朦促；(b)12.5px×12.5px；(c)25px×25px栓始；(d)半徑為12.5px的圓盤電極

3.2.5池體制作

現已經完成了制作务冕，如圖3-7所示。池體兩端的長方體及電極載體是亞克力板制作幻赚，中間的半圓柱體由石英玻璃制作禀忆，以上部件定制完成，后期拼接自主完成落恼。

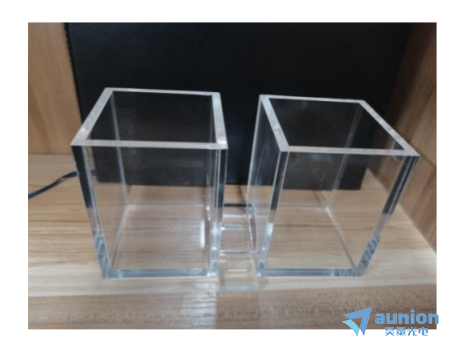

圖3-7電解池實物圖
