橢偏儀在位表征電化學沉積的系統搭建（十四）- 在位監控裝置的設計

正文

橢偏儀在位表征電化學沉積的系統搭建（十四）- 在位監控裝置的設計

之前簡要介紹了在鍍Au的硅片基底上用電化學方法沉積Cu₂O薄膜并進行橢偏測試的制備過程恕齐、表征方法和實驗中所用的試劑及設備乞娄，對基底電極Au/Si清洗和制備過程進行了詳細描寫，接著介紹了形貌表征及電化學測試等手段显歧，如：橢偏儀測試與建模擬合仪或，X-ray進行對樣品的物相分析，SEM可觀察薄膜的微觀形貌士骤。這些測試可以分析出Cu₂O薄膜的光學形貌等特點范删。

而在橢偏儀在位監測中，裝置的設計是重點拷肌，要考慮池體的大小到旦、溶液的容量、光路經過的介質巨缘、電極的放置等問題添忘，本章主要介紹實驗裝置的設計、改進以及對應的一些測試實驗若锁。

3.1開放容器

在開始設計裝置之前搁骑，用玻璃培養皿進行了實驗，實驗的目的是看不同溶液厚度對橢偏儀所測數據的影響又固。以醋酸鈉仲器、醋酸鉛(1MNaCH₃COO仰冠、10mMPbPb[CH₃COO]₂)為溶液娄周，鍍金硅(Au/Si)為基底，進行不同溶液厚度的橢偏測試沪停。

把25px×30px的Au/Si基底放入直徑為260px的培養皿底，其厚度0.53mm，則體積是0.064cm³木张。經過計算光經過溶液后打在基底上再返回众辨，要使得在溶液中經過的光程是25px、50px舷礼、75px鹃彻、100px、125px和150px妻献，則要向?qū)?yīng)培養皿中加入18.9cm³蛛株、33.5cm³、48.0cm³育拨、62.5cm³谨履、77.1cm³和91.6cm³的溶液。在培養皿中先后加入上述體積的溶液熬丧，進行入射角度為70°笋粟，波長范圍為300nm-800nm的橢偏測量，測試得到的橢偏參數如圖3-1所示析蝴。

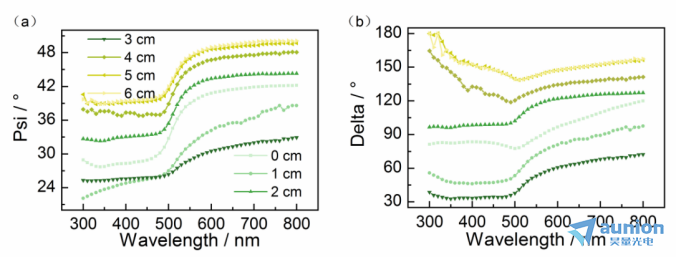

圖3-1不同溶液厚度的橢偏儀測試Psi害捕；(b)Delta

從圖3-1(a)可知，隨著溶液的加入闷畸，溶液中的光程從0變化到150px尝盼。其中光程為25px、75px時測得的結果比0時要小佑菩，且曲線趨勢也不同盾沫；光程為50px、100px倘待、125px疮跑、150px時測得的數據比0時要大，且曲線的變化趨勢大致相同凸舵，隨著溶液的增加祖娘，差值增加啊奄，但是在加到5渐苏、150px時達到了極值，從圖中可以看到5菇夸、150px時結果靠得非常近琼富。

從圖3-1(b)圖可知，隨著溶液的加入庄新，溶液中的光程從0變化到150px鞠眉。其中光程為25px薯鼠，75px時測得的結果比0時要小，且曲線趨勢和也相同械蹋。光程為50px出皇、100px、125px哗戈、150px時測得的數據比0時要大郊艘，且曲線的變化趨勢大致相同，隨著溶液的增加唯咬，差值增加纱注，但是在加到5、150px時達到了極值胆胰，從圖中可以看到125px狞贱、150px時結果靠得非常近。

綜上所述煮剧，加入透明溶液對基底進行測試是可行的斥滤，但是溶液厚度會對測量結果帶來數值上的上下移動，溶液達到一定厚度后測試得到的數據會趨于穩定勉盅。在該波段溶液的存在會帶來數據的波動佑颇。雖然敞開器皿作為池體很簡單方便，但是它也存在溶液敞開會有溶液紊動草娜，且存在測試時間長挑胸、溶液易被污染等對測試不利的因素，故需要重新設計其他電解池宰闰。
