橢偏儀在位表征電化學沉積的系統搭建（二十四）- 全波段沉積過程的準在位測試分析-不同時間所測試的光學常數

不同時間所測試的光學常數(n伴郁，k)

從圖4-6(a耿战，c)中看，隨著時間的變化蛾绎，光學常數n值發生變化昆箕。當沉積時間為180s的時候，在500-800nm的長波范圍租冠，其值從襯底(0s)時接近0增加到1.3鹏倘，這也意味著新的物質增加，導致襯底的信息減少顽爹。在沉積時間增加到360s時纤泵，在410nm附近處現一個較明顯的波包，同時在500-800nm區域出現一個波包，大約在700nm附近捏题。當沉積時間增加到540s之后玻褪，n的值恢復到沉積180s附近」可以看出隨著沉積的變化带射，沉積的CU₂O導致n值在360s的時候有額外的峰出現。

圖4-6(b循狰，d)中顯示吸收系數k值隨著時間的變化窟社，與反射率R的趨勢一致。在所測波長范圍內的k值在沉積過程都有所降低绪钥，特別是在長波500-800nm的范圍內明顯灿里。當沉積時間為180s的時候，k的值大約從4.3降到1.5程腹，在波長為300-500nm之間存在兩個波包(330nm匣吊，400nm)。當沉積時間增加到360s時寸潦，在短波300-500nm的波包變得較明顯(330nm色鸳，380nm)，整體的k值都有所增加甸祭。當沉積時間增加到540s時缕碎，k的值大小恢復到沉積180s時，但是在500-800nm范圍出現兩個波包(510nm池户，670nm)咏雌。到720s的時候，在500-800nm范圍只有一個大的波包校焦，并且k值較大赊抖。到900s和1080s時，在500-800nm范圍時寨典，又出現兩個波包但是峰位有所變化氛雪。因此同樣的，k值顯示在360s比其它沉積時間有較大的吸收值耸成。由于隨著沉積時間的增加报亩，所沉積的物質的物相可能發生變化以及厚度和表面粗糙度的變化。

新的物相會同時影響到折射率n和消光系數k井氢，在圖4-6(b弦追，d)吸收系數中觀察到在長波范圍內(500-800nm)的波包變化但是在圖4-6(a，c)中的折射率系數n卻沒有監測到花竞，這意味著這個吸收系數的波包變化可能是沉積材料的厚度導致的劲件。對于沉積時間為360s時，相對于其它沉積時間n值和k值都有很大的變化，這可能是360s時的物相較為特殊零远。由于物相包括新物質或者是結構苗分，如顆粒尺寸，所以這可能是由于在360s時沉積的CU₂O成分或者是此時得到的顆粒尺寸或者結構有所不同牵辣，需要進一步驗證摔癣。

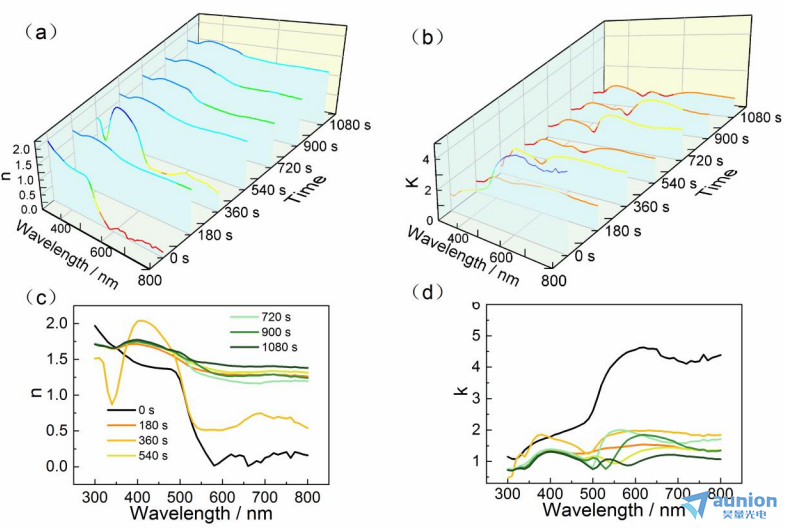

圖4-6不同沉積時間得到的橢偏數據圖(a，c)n纬向，(b供填，d)k
