橢偏儀在位表征電化學沉積的系統搭建（四）-電化學沉積及原理

2.電化學沉積

電化學沉積是半導體薄膜沉積和微電子制備銅互連的重要制備方法奈搜。而在沉積過程中的成核和生長對于半導體薄膜和銅互連的性質非常重要，橢偏儀在位監測提供一種實時監控薄膜沉積的方法盯荤。但是橢偏儀在位監測受到光路設計馋吗，實驗裝置，固液界面以及光譜解析的影響秋秤，構建其監測系統是一個挑戰宏粤。實驗室前期對電化學沉積Cu₂O薄膜進行了系統的研究，發現其沉積與沉積電壓灼卢、溶液溫度和pH值等密切相關绍哎。本文以電化學沉積Cu₂O薄膜為例，從而在實驗室構建橢偏儀在位監控電化學沉積系統鞋真。

不同于真空薄膜生長崇堰，電化學沉積生長過程涉及到溶液層和固液界面，導致其在位監測是一個挑戰涩咖。

2.1原理

電化學沉積是利用氧化還原反應在電極表面上沉積得到各種薄膜的材料制備方法赶袄。在沉積過程中電極表面的狀態、沉積電壓或電流的大小抠藕、沉積電解液的溫度和pH值都會對得到的薄膜的相產生影響饿肺。故而可以通過沉積中電壓、電流的調控沉積不同成分組成及不同微觀形貌的薄膜盾似。利用電化學沉積可以減小制作成本敬辣、提高產量，且由于其較好的可控性和可操作性零院，目前已經廣泛應用于工業化生產溉跃，實現電化學大規模沉積。

電化學薄膜沉積可分為恒壓沉積和恒電流沉積告抄。恒壓法又分為過電位沉積和欠電位沉積撰茎。過電位沉積就是在大于能斯特電位的電壓下進行沉積。欠電位沉積除了在單層(亞單層)沉積外打洼，有時當基底影響到第二龄糊、第三個單層時也可以在欠電位下沉積逆粹。Hevesy于1912年第1次報道了不同放射性元素在Cu電極上的欠電位沉積現象。目前炫惩，報道過的欠電位沉積體系有質子性溶劑僻弹、離子液體及有機溶劑等。

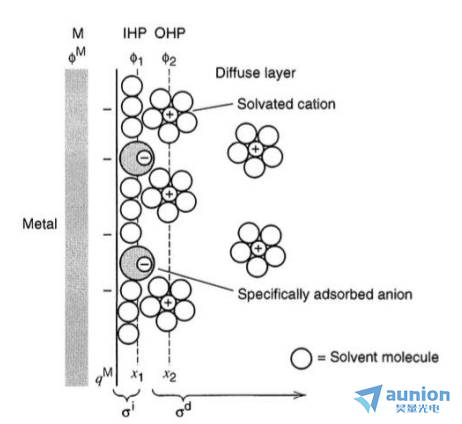

在電化學過程中他嚷，由于電化學反應的存在電極和溶液界面會出現溶劑離子濃度從本體溶液濃到電極界面濃度降低的過程蹋绽，而從本體溶液濃度到電極表面溶液濃度的這一過渡區域就叫擴散層。圖1-6為Gouy-Chapman-Stern雙電層模型筋蓖，擴散層是外亥姆霍茲層(OHP)到溶劑濃度達本體溶液濃度的區域卸耘，擴散層的厚度取決于溶液中離子的濃度，當濃度大于10-2M時粘咖，擴散層的厚度將小于30nm鹊奖。

圖1-6電極-溶液雙層區模型

因此電化學沉積過程發生在固液界面，而溶液的固液界面比較復雜涂炎，包含了擴散層等忠聚。
